'SKIL XP brushless' cordless reciprocating saw





- SKIL 'XP': Exceptional performance through high specifications, advanced brushless motor and industry-leading battery technology
- 'PWRASSIST™': The USB adapter enables charging of mobile devices on the go
- Automatic 'PWRJUMP™': Charges from 0% to 15% in the first 5 minutes (4.0Ah battery / 100% in 50 min.)
- Digital brushless motor: More power, more efficiency and 10x longer lifetime

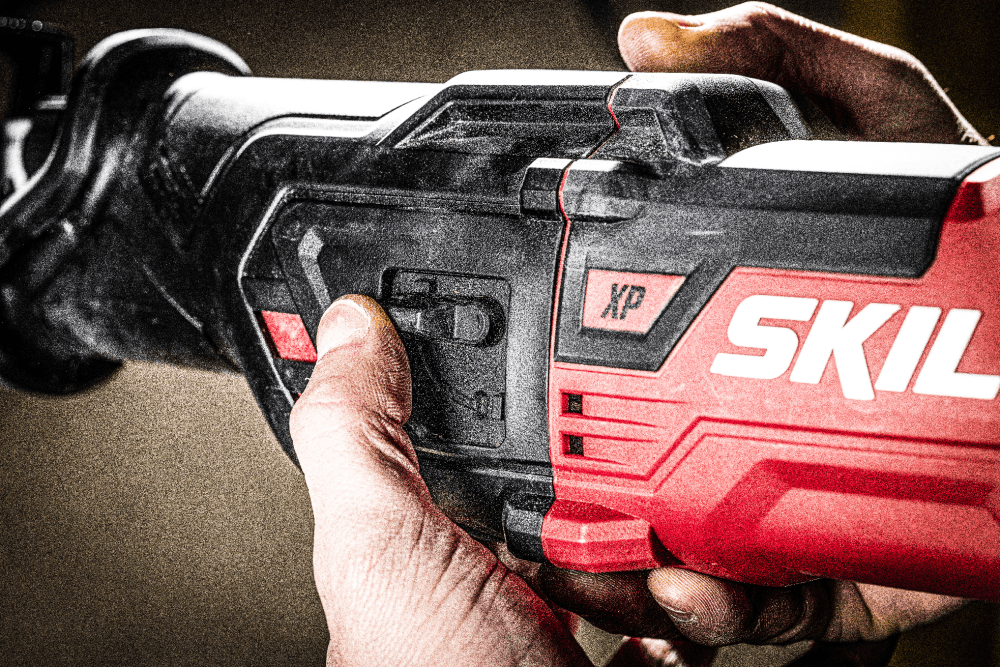

- Orbital action for even faster cutting results
- Variable-speed control for optimal cutting results in various materials
- Quick and easy blade change with toolless 'Clic' system
- Counterweight balancing system for low vibration ('VRS')
- Electric brake assures greater comfort and allows quicker work

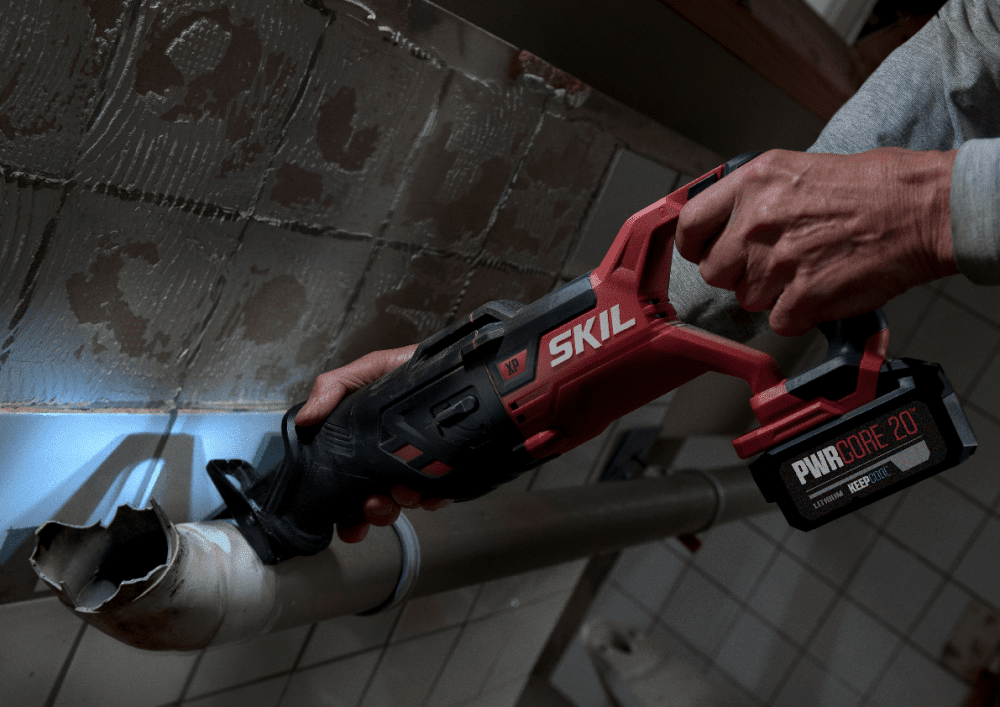

- LED light for a better sight of the workpiece and more comfortable working in poorly lit areas
- Design suited for convenient hanging of the tool
- Adjustable foot position ensures efficient blade use
- Softgrip for a better and more comfortable grip
- Lithium-Ion technology: no memory effect, no self-discharge and always ready for use

KEEPCOOL™
Our patented ‘KEEPCOOL™’ technology prevents batteries from overheating and improves battery performance.
Discover KEEPCOOL™ACTIVCELL™
Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.
Discover ACTIVCELL™

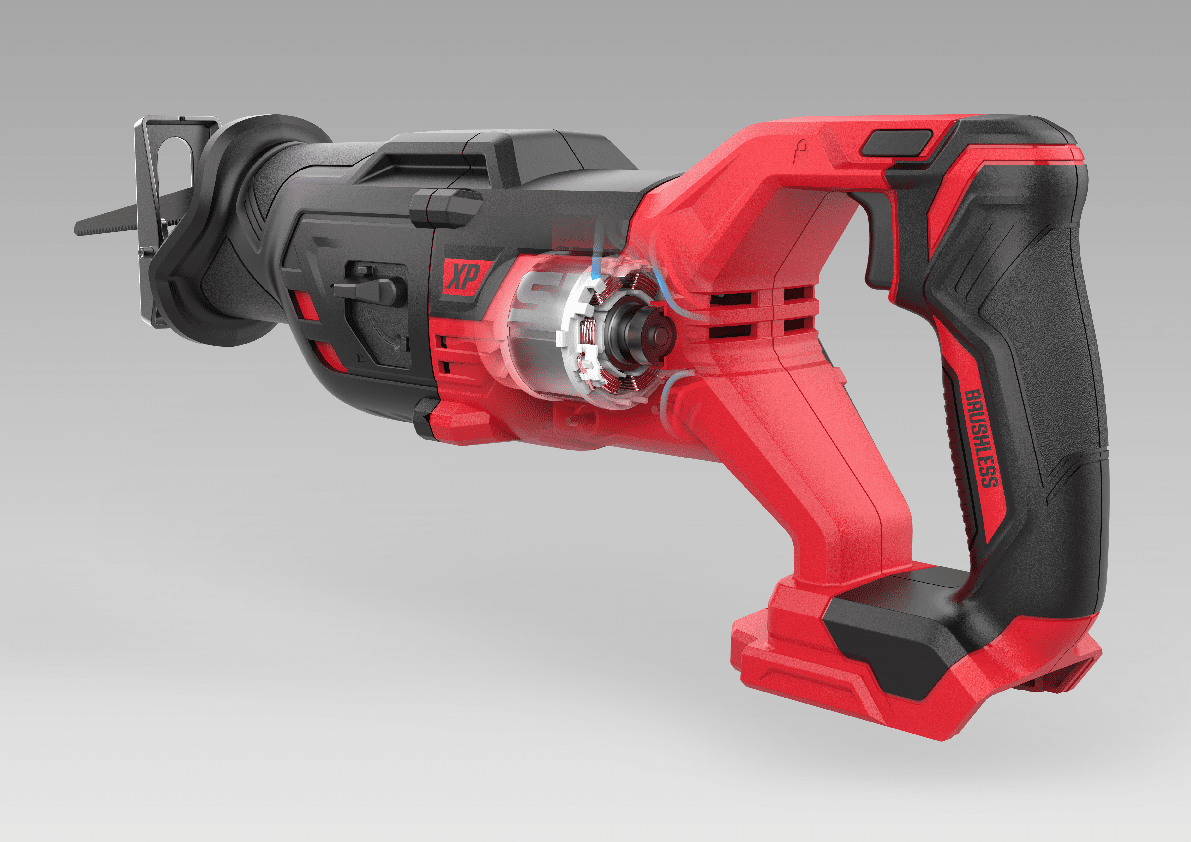

Digital Brushless Motors
The latest cutting-edge technology is embedded in the very DNA of each and every SKIL tool. Our compact, digital brushless motors deliver extra power, extra efficiency and a longer lifetime than comparable brushed motors.
Discover Digital Brushless MotorsPWRASSIST™
There’s no need to restrict your SKIL batteries to the use of SKIL power tools. Our PWRASSIST™ battery and PWRASSIST™ USB adapter allow you to charge phones and tablets on the go.
Discover PWRASSIST™

PWRJUMP™
Less charging time for batteries means less downtime. Get your SKIL 20V Max PWRCORE 20™ Lithium-ion batteries powered up fast to get back to the job in a flash.
Discover PWRJUMP™

PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.
PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.
Product Description
‘XP’ brushless cordless reciprocating saw with vibration reduction system

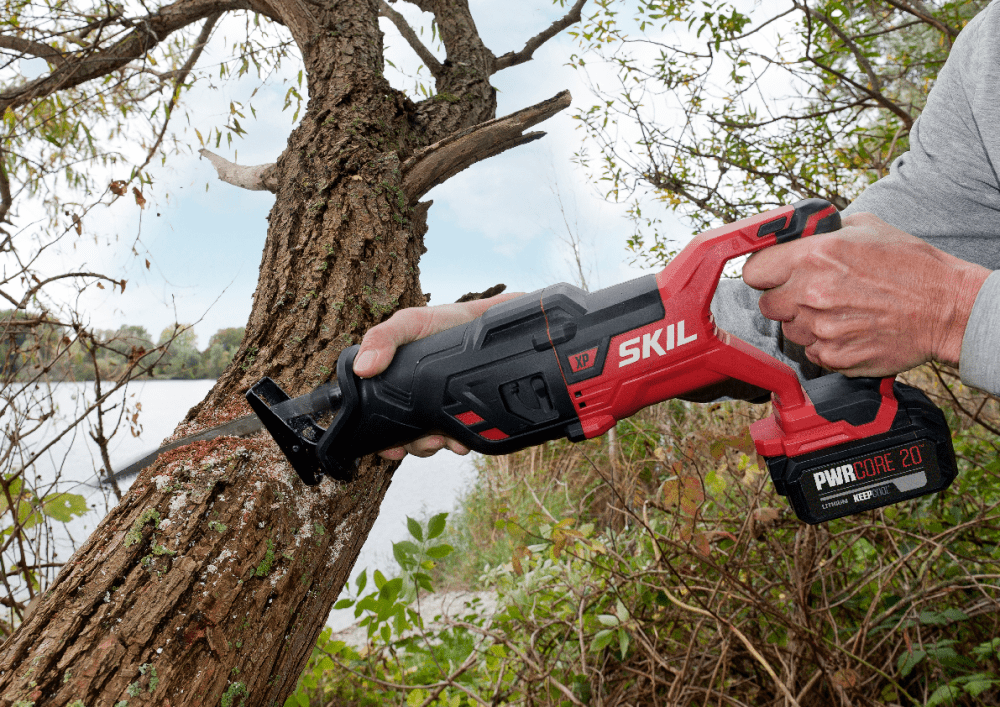

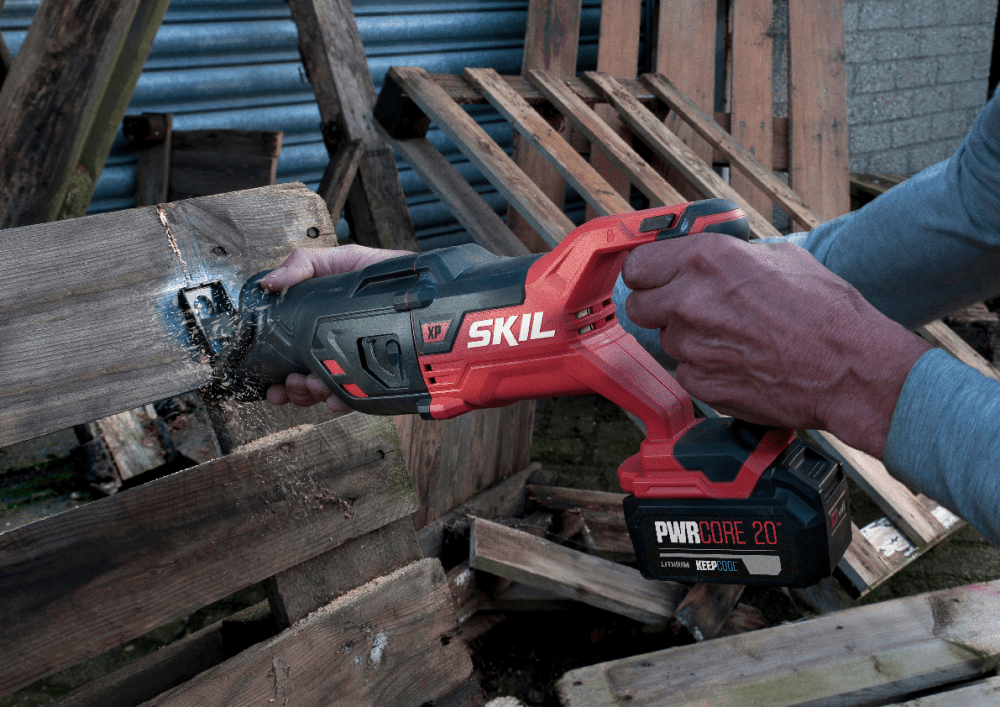

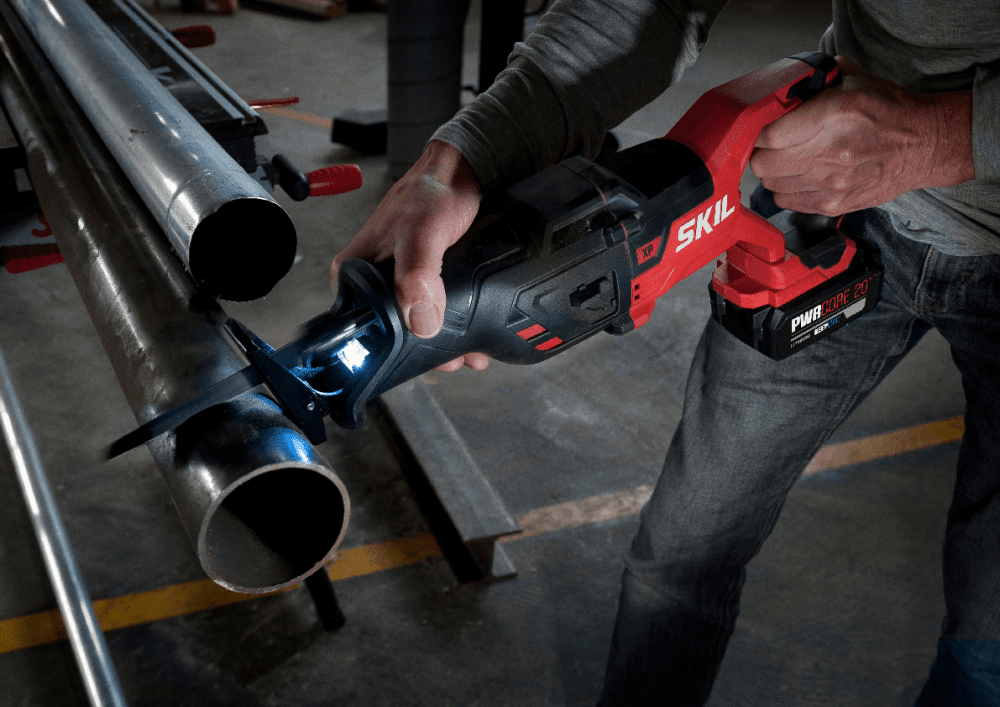

The '20V Max' SKIL 3480 is a brushless cordless reciprocating saw and part of the SKIL ‘brushless XP’ range. ‘XP’ tools deliver exceptional performance and durability, thanks to their high specifications and advanced digital brushless motors. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading, advanced ‘PWRCORE 20™’ battery and charger technology. Brushless SKIL 3480 is the ideal tool for tough sawing applications, such as demolition cutting, shortening beams and tree trimming. With its large 29 mm stroke length, it has a very high sawing performance and the orbital action switch enables even faster cutting if needed. The advanced double counterweight construction (‘VRS’) makes sure that, despite its high performance, the vibration is very low. The digital brushless motor delivers more power, more efficiency and a 10x longer lifetime than a comparable brushed motor. Good visibility of your work is assured thanks to the LED light. Changing blades has never been easier thanks to the ‘Clic’ system, which doesn’t require any special tools or keys. For your convenience, the design is suited for convenient hanging of the tool. Furthermore, the adjustable foot position allows you to use the blade more efficiently. Last but not least, the softgrip on the tool ensures convenient working. The SKIL ‘PWRJUMP™’ charger automatically charges your ‘PWRCORE 20™’ battery from 0% to 15% in the first 5 minutes, so you can get back to the job in a flash. The ‘PWRASSIST™’ USB adapter enables charging of mobile devices on the go. The SKIL 3480 DB is supplied in a carrying bag with one 4.0Ah ‘KEEPCOOL™’ battery, a very fast 'Auto PWRJUMP™' 6.0A charger, a ‘PWRASSIST™’ USB charging adapter, one saw blade for wood, one saw blade for metal and one saw blade for pruning.

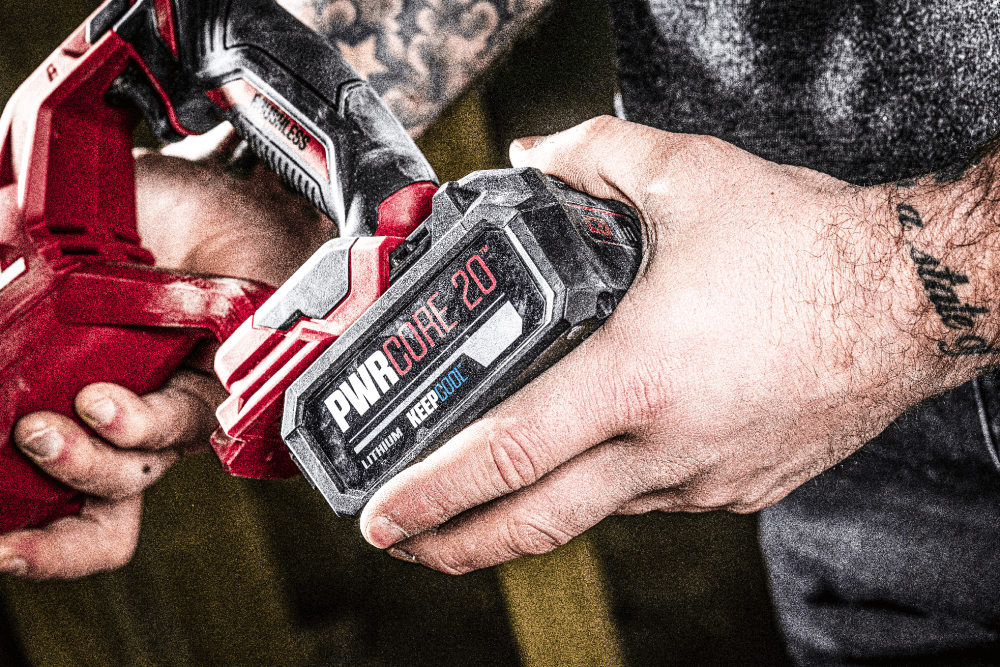

‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
Specifications
Performance Level | EXCEPTIONAL PERFORMANCE |
---|---|
Battery capacity | 4.0 A·h |
Charging time | 0.83 h |
Voltage/frequency (charger) | 220-240V/50-60Hz |
Battery type | Lithium-Ion |
Voltage Max | 20 V Max |
Charge current | 6 A |
Number of batteries | 1 |
Net weight excl. battery | 2.9 kg |
Blade speed | 0-3000 |
Sawing capacity in wood | 265 mm |
Stroke length | 29 mm |
Sawing capacity in aluminium | 40 mm |
Sawing capacity in metal | 30 mm |
Sawing capacity in metal pipes | 130 mm |
Power Platform | PWRCORE20 |
Brushless | Yes |
EAN | 4894863200556 |
Power source | Direct Current |
Sound pressure | 85.0 dB |
Uncertainty noise power (K) | 5.0 dB |
Uncertainty Vibration (K) | 1.5 m/s² |
Sound power | 96.0 dB |
Vibration level (cutting chipboard) | 9.9 m/s² |
Vibration level (cutting wooden beams) | 9.5 m/s² |

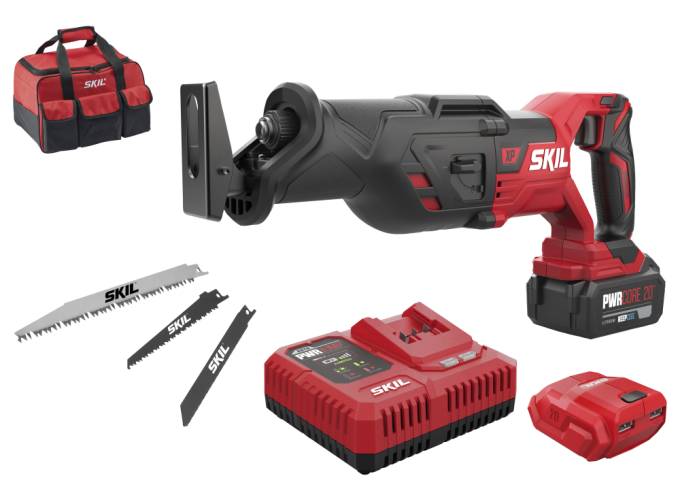

Packaging contains
- SKIL 3480 'XP' brushless cordless reciprocating saw
- 'PWRCORE 20™' 4.0Ah Li-ion battery (3104)
- 'Auto PWRJUMP™' 6.0A charger (3123)
- 'PWRASSIST™' cordless USB charging adapter (3162)
- Carrying bag
- Saw blade (wood)
- Saw blade (metal)
- Saw blade (pruning)
- Hex key
- Instruction manual
