Cordless circular saw





- Powerful '20V Max' (18V) cordless circular saw with a cutting depth up to 54 mm

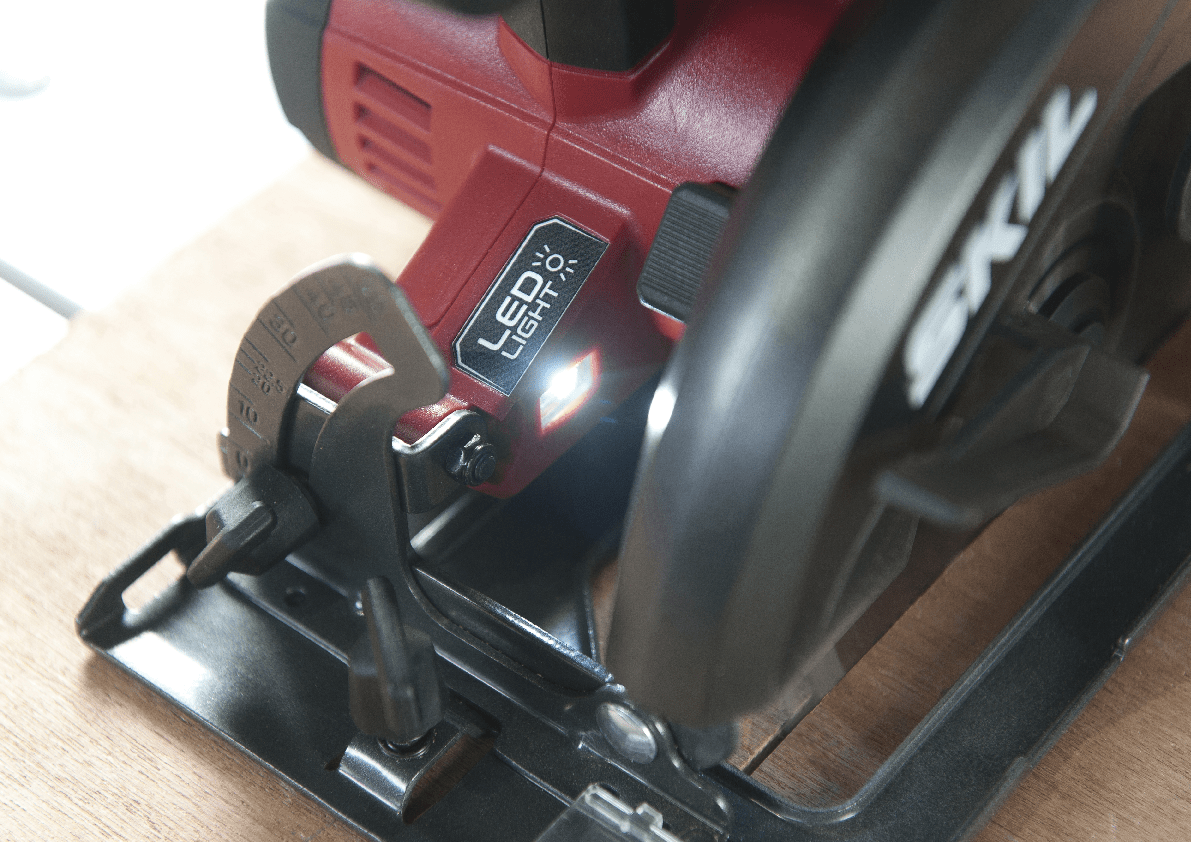

- LED light illuminates the line of cut for better sight of the workpiece
- Maximum cutting depth of 54 mm at 90° and 44 mm at 45°

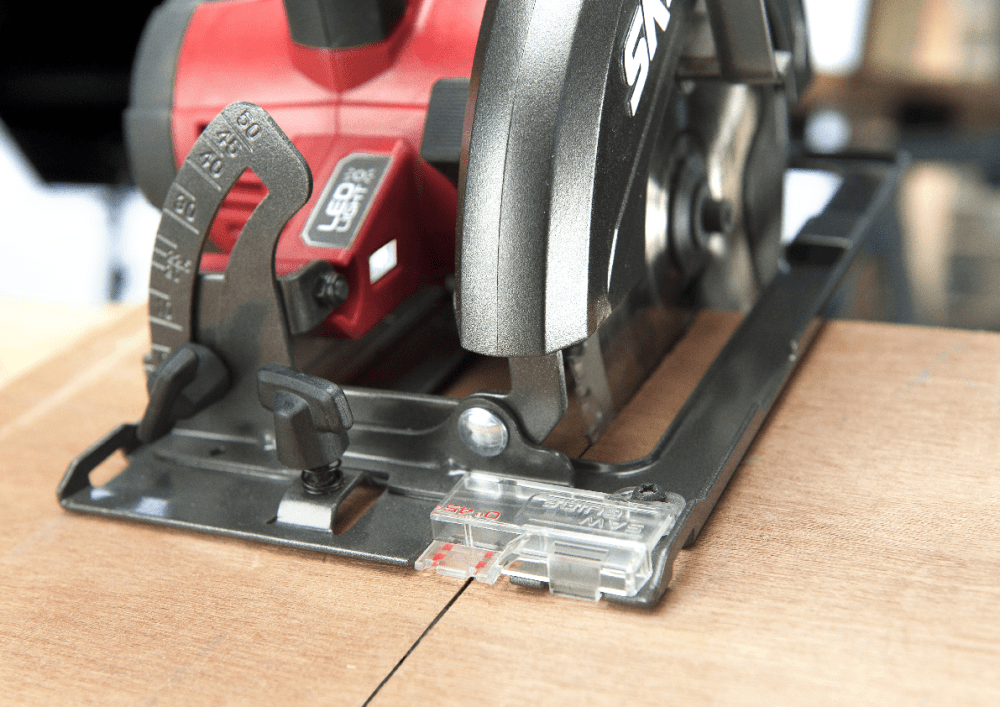

- Saw line visor for easy and accurate tracing of marked line
- Electric brake assures greater comfort and allows quicker work
- Spindle lock for easy blade changing

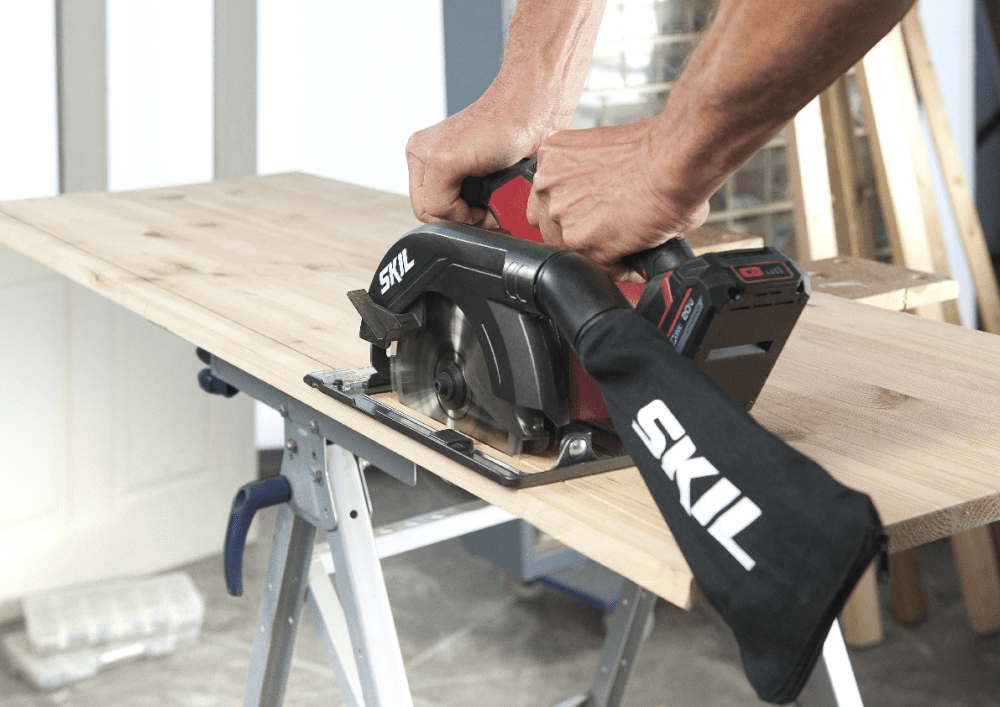

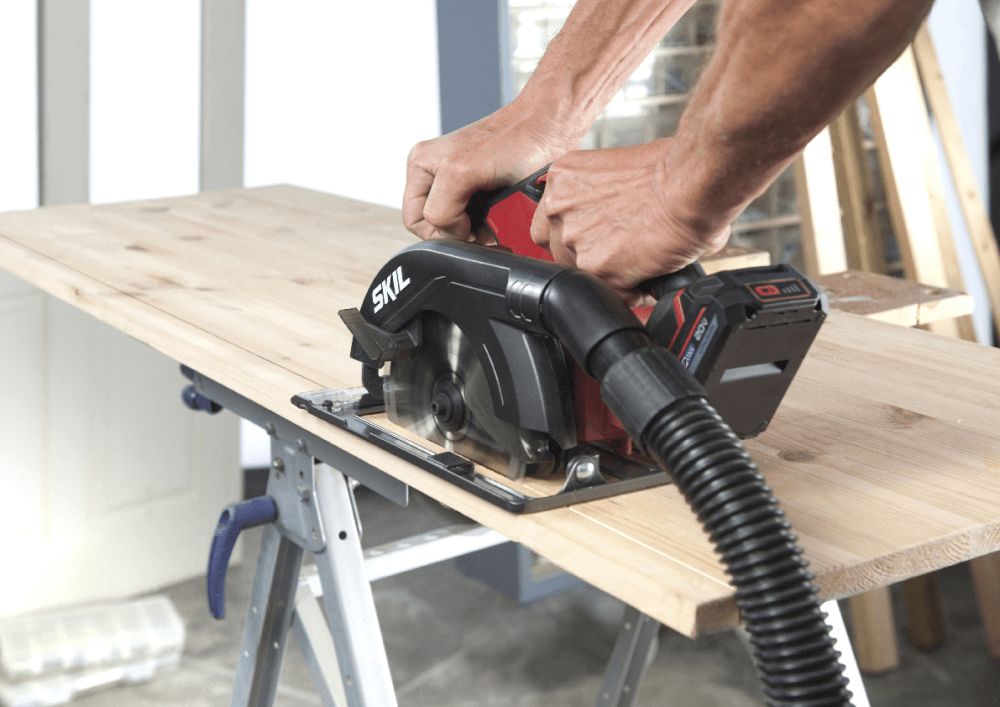

- Dust port for attaching a vacuum cleaner or dustbag if needed
- Ergonomically superior design ensures optimal control and guidance
- Blade on left side for maximum visibility of the cutting line
- Automatic 'PWRJUMP™': Charges from 0% to 15% in the first 5 minutes (4.0Ah battery / 100% in 50 min.)
- Lithium-Ion technology: no memory effect, no self-discharge and always ready for use
- Patented battery-level indicator conveniently displays the charge level of the battery
- Integrated key storage
- Dust-protected bearings ensure extra durability

ACTIVCELL™
Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.
Discover ACTIVCELL™

PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.
PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.
Product Description
Precise cordless circular saw with saw line visor
The ’20V Max’ (18V) SKIL 3520 cordless circular saw is ideal for precise sawing up to 54 mm deep. To give you an idea, most commonly used depths (of planks, beams, etc.) can be easily handled with this capacity. Good visibility of your work is assured thanks to the LED light. The adjustable footplate allows bevel cuts up to 50°. A saw line visor is attached for easy, accurate tracking of the marked line. For a cleaner working environment, the vacuum cleaner adapter fits most standard-size vacuum cleaners. Don’t waste your time and get to work. The ‘PWRJUMP™’ charger only needs 5 minutes to charge your 4.0Ah battery up to 15%! Other handy features include the electric brake for extra working comfort and the spindle lock for easy blade changing. To provide durability this circular saw is equipped with sealed ball bearings. Sealed ball bearings protect the saw from dust to extend the saw’s lifetime. What’s more, this circular saw has ergonomic softgrip handles that ensure optimum control and working comfort. The SKIL 3520 DB is supplied in a carrying bag with a ‘20V Max’ (18V) 4.0Ah ‘KEEPCOOL™’ battery, a ‘PWRJUMP™’ charger, a 24-tooth carbide-tipped saw blade, parallel guide, vacuum cleaner adapter and dust bag.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
Specifications
Performance Level | HIGH PERFORMANCE |
---|---|
Net weight excl. battery | 2.5 kg |
Saw blade Ø | 165 mm |
Sawing capacity at 90° | 54 mm |
Sawing capacity at 45° | 44 mm |
Arbor Ø | 16 mm |
Net weight incl. battery | 3.2 kg |
Battery capacity | 4 A·h |
Number of batteries | 1 |
Charge current | 6 A |
Voltage Max | 20 V Max |
No-load speed | 4500 |
Battery type | Lithium-Ion |
Voltage/frequency (charger) | 220-240V/50-60Hz |
Charging time | 0.83 h |
Power Platform | PWRCORE20 |
Brushless | No |
Video Url | https://www.youtube.com/embed/YEGgFtyzVos?rel=0 |
LED Light | No |
LED Light | Yes |
EAN | 8719643001221 |
Power source | Direct Current |
Sound pressure | 91 dB |
Uncertainty Vibration (K) | 1.5 m/s² |
Sound power | 102 dB |
Uncertainty noise pressure (K) | 3 dB |
Vibration level (cutting wood) | < 2.5 m/s² |

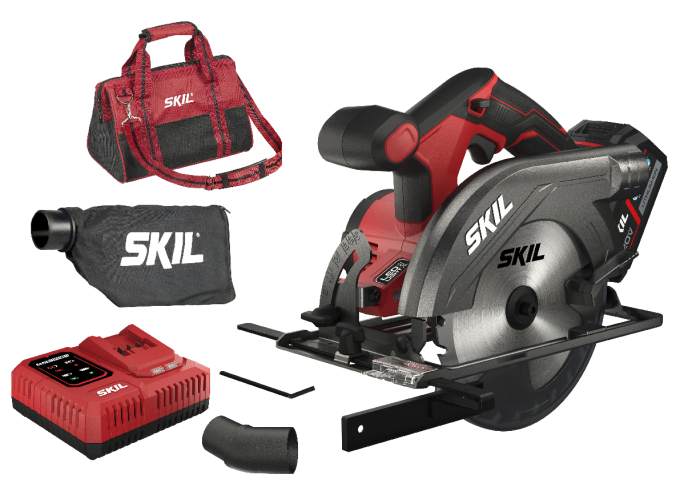

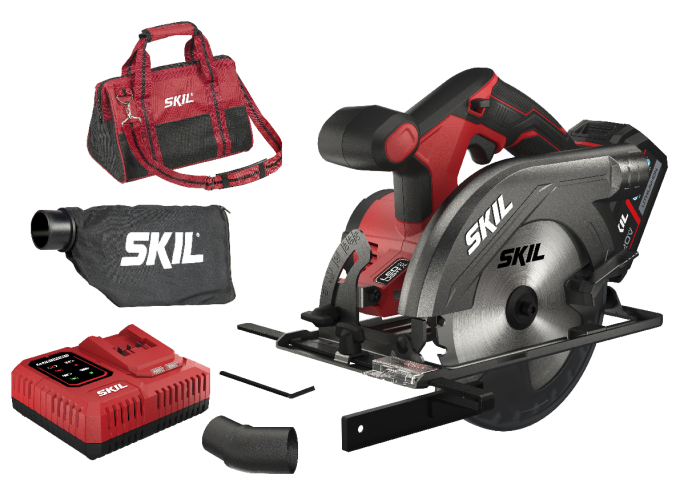

Packaging contains
- SKIL 3520 cordless circular saw
- Carrying bag
- '20V Max' 4.0Ah 'KEEPCOOL™' Li-Ion battery (1x)
- 'PWRJUMP™' charger (3123 AA)
- Carbide-tipped saw blade (24 teeth, Ø 165 mm, wood)
- Parallel guide
- Dust bag
- Vacuum cleaner adapter
- Hex key
- Instruction manual
