5765 AG

Circular saw

Powerful 1350 Watt motor with high speed (5000 r.p.m.) for fast, high-precision cutting

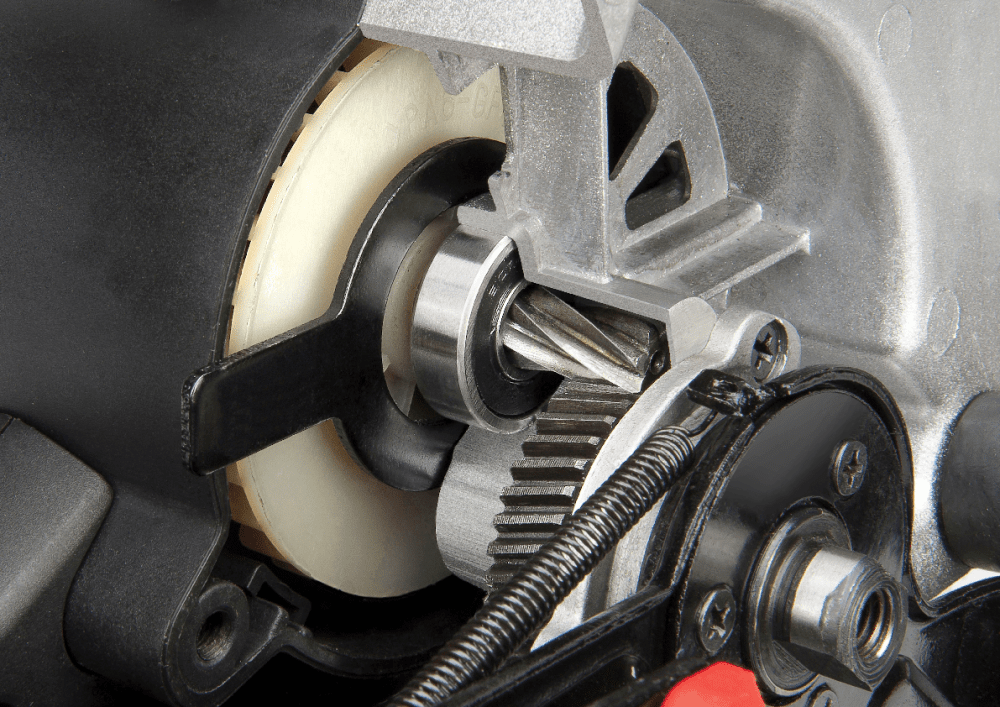

Durable helical gears and dust-sealed ball-bearing construction
Spindle lock for easy blade changing
Dust suction facility with dust port for most household vacuum cleaners or dustbag (optional: SKIL accessory 2610387402)
Compact design for optimal control and guidance
Safety switch to prevent accidental starting
Maximum depth of cut is 65 mm at 90 degrees, 43 mm at 45 degrees
Lower guard lift lever for pocket cuts
Integrated key storage

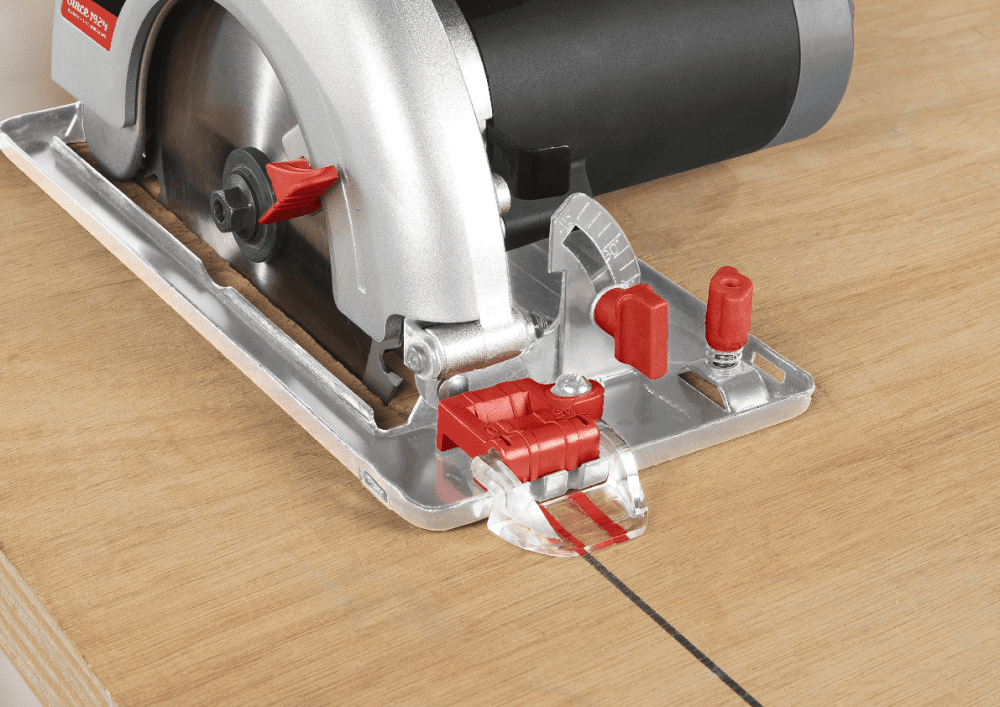

Saw line visor for easy and accurate tracing of marked line
Ergonomically superior design for optimal control and guidance

Specifications

Performance Level	RELIABLE PERFORMANCE
No-load speed	5000
Voltage/frequency	220-240V/50-60Hz
Input wattage	1350 W
Arbor Ø	16 mm
Sawing capacity at 45°	43 mm
Sawing capacity at 90°	65 mm
Saw blade Ø	184 mm
Power source	Alternating Current
Sound pressure	97 dB
Sound power	108 dB
Uncertainty noise pressure (K)	3 dB
Uncertainty Vibration (K)	1.5 m/s²
Vibration level (cutting metal)	2.2 m/s²
Vibration level (cutting wood)	2.6 m/s²
