Cordless SDS drill
- Pneumatic hammer mechanism for drilling in concrete
- 3-in-1: for screwdriving, drilling and hammer drilling in concrete
- Compatible with both 'SDS+' drills as well as hex drills and screwdriver bits
- Compact and ergonomic design
- Variable speed ensures a gentle start and full control at all times
- LED forward/reverse indicator enables you to easily see in which direction you are driving
- LED light for a better sight of the workpiece and more comfortable working in poorly lit areas
- Lithium-Ion technology: no memory effect, no self-discharge and always ready for use
- Ergonomic design and softgrip for optimal comfort and control
KEEPCOOL™
Our patented ‘KEEPCOOL™’ technology prevents batteries from overheating and improves battery performance.
Discover KEEPCOOL™ACTIVCELL™
Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.
Discover ACTIVCELL™
PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.
PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.
Product Description
Lithium-Ion cordless SDS drill with pneumatic hammer mechanism
The ‘20V Max’ (18V) SKIL 3810 is a compact, yet powerful 3-in-1 SDS drill for drilling in concrete as well as for regular drilling and screwdriving jobs. Use the hammer mechanism for drilling in concrete, and switch the mechanism off for regular drilling and screwdriving. This cordless SDS drill is compatible with both ‘SDS+‘ drills and regular hex drills and screwdriver bits. All in all, this versatile tool truly offers everything you need: reliable Lithium-Ion battery technology, variable speed for full control and the LED light ensures good visibility of your work. What’s more, this tool has a convenient LED forward/reverse indicator, so you can immediately see in which direction you’re driving. Last but not least, the ergonomic design and softgrip on the tool provide extra working comfort. The SKIL 3810 CA is supplied with a set of 10 screwdriver bits, a 75-mm magnetic bitholder and a keyless chuck with ‘SDS+’ adapter. The battery isn’t included.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
Specifications
| Performance Level | HIGH PERFORMANCE |
|---|---|
| Max. impact rate | 0-5000 IPM |
| Battery type | Lithium-Ion |
| No Load Speed (rpm) | 0-900 |
| Voltage Max | 20 V Max |
| Net weight excl. battery | 1.5 kg |
| Chuck Type | SDS+ & Hex |
| Drilling capacity in steel | 10 mm |
| Drilling capacity in wood | 12 mm |
| Drilling capacity in concrete | 12 mm |
| Impact force | 1 J |
| Power Platform | PWRCORE20 |
| Brushless | No |
| Variable speed switch | Yes |
| EAN | 8719643001139 |
| Power source | Direct Current |
| Sound pressure | 88 dB |
| Uncertainty noise power (K) | 3 dB |
| Uncertainty Vibration (K) | 1.5 m/s² |
| Sound power | 99 dB |
| Vibration level (chiseling) | 13.7 m/s² |
| Vibration level (hammer drilling in concrete) | 13.7 m/s² |

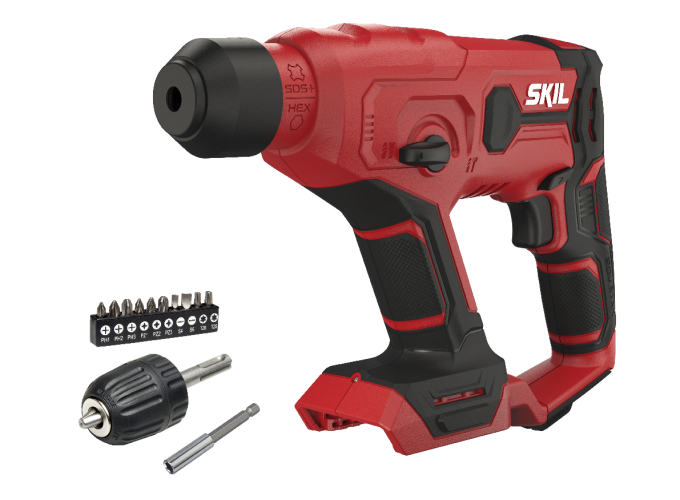

Packaging contains
- SKIL 3810 cordless SDS drill
- Magnetic bitholder (75 mm)
- Keyless chuck with 'SDS+' adapter
- Screwdriver bits 10 pcs (S4, S6, PH1, PH2, PH3, PZ1, PZ2, PZ3, T20, T25)
- Instruction manual
