'Compact brushless' cordless hammer drill





- Digital brushless motor: More power, more efficiency and 10x longer lifetime

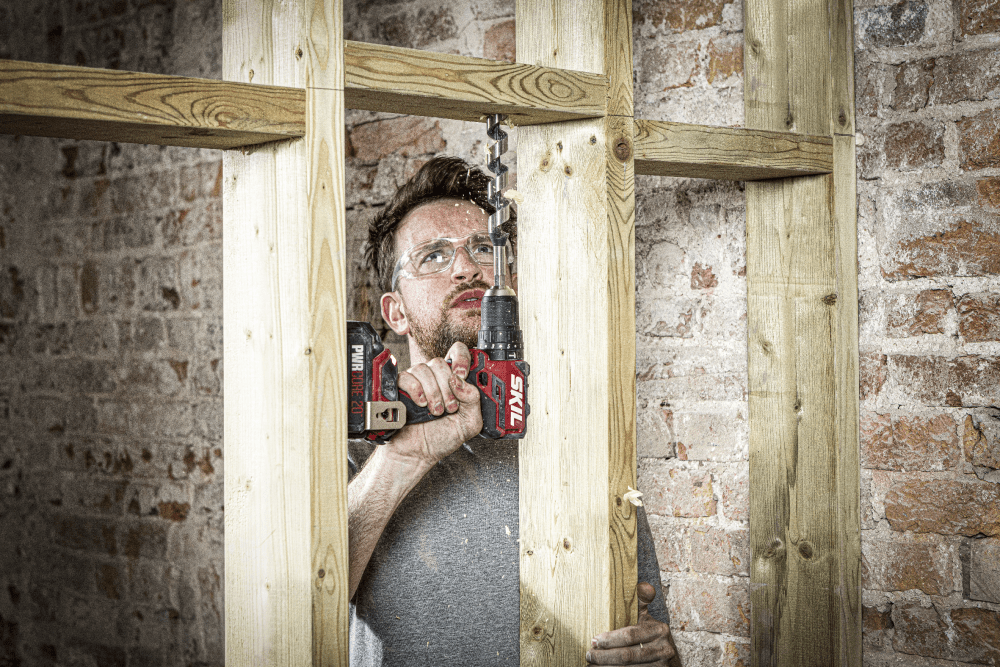

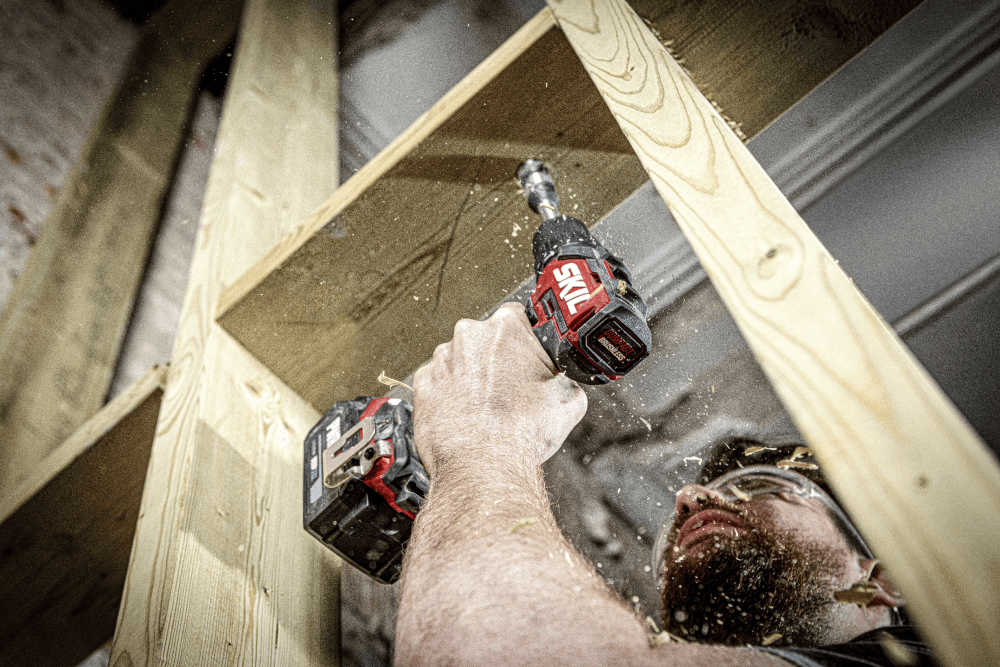

- Compact and lightweight design, for working overhead or in hard-to-reach tight areas
- Advanced LED work light with 2 modes, including torch mode with a 10-minute shut-off function
- 3 functions: screwdriving, drilling and hammer drilling

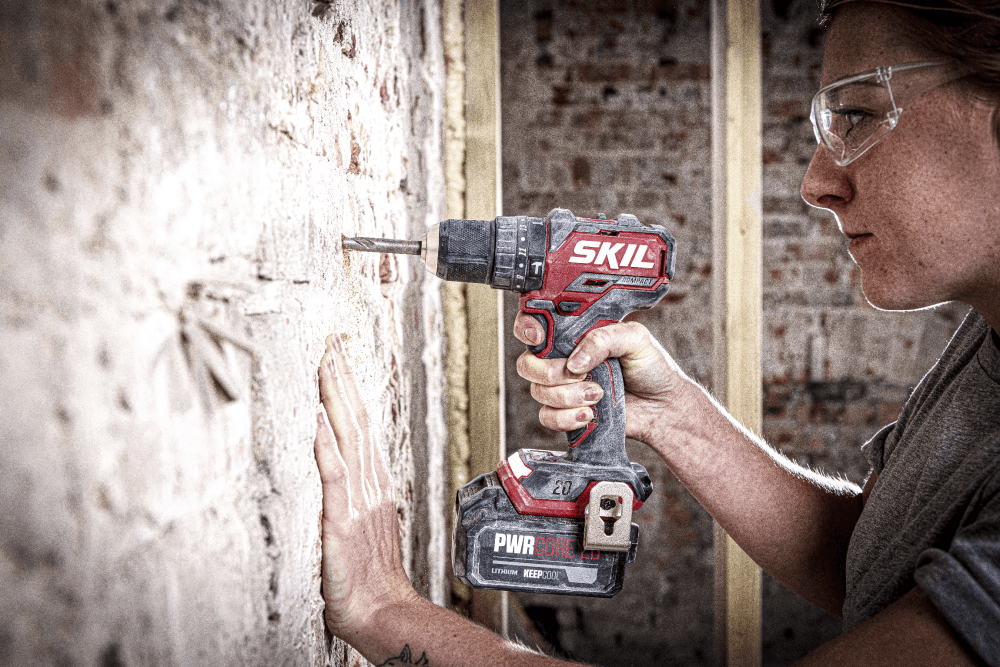

- Hammer drill function for drilling in masonry
- Two gears: high speed for drilling and high torque for tough screwdriving

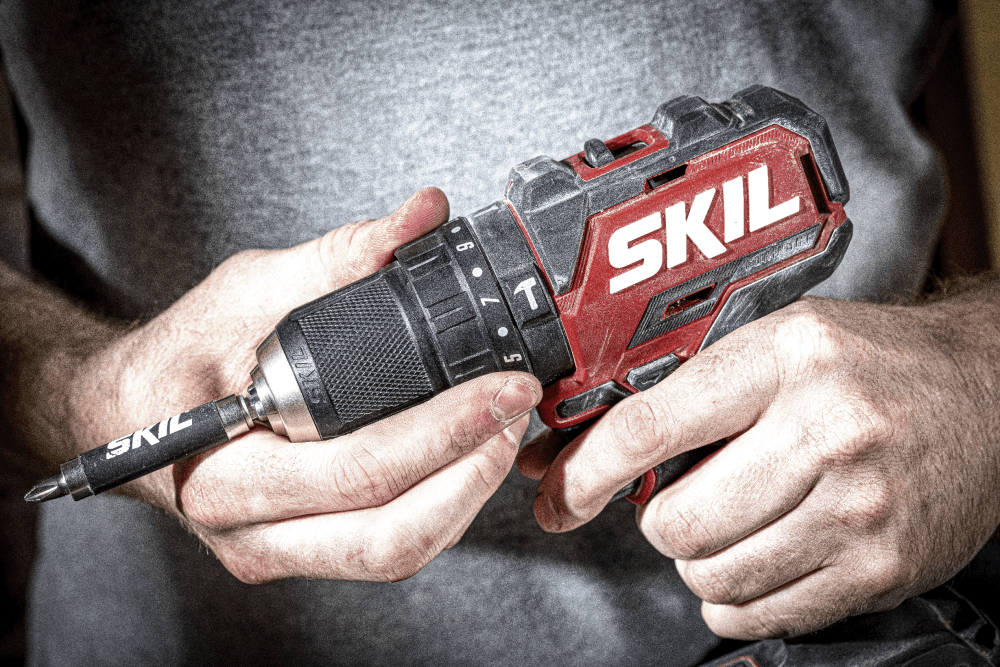

- 13 mm keyless ratcheting chuck for optimal bit gripping strength
- Automatic spindle lock for fast and easy accessory changing
- Function selector to easily switch between screwdriving, drilling and hammer drilling

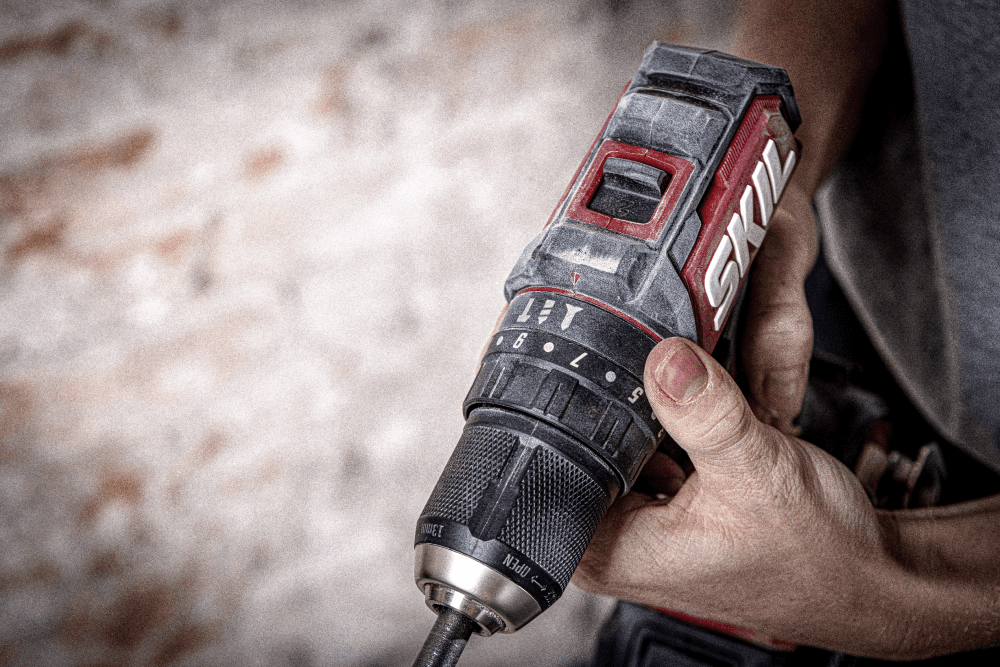

- 17 torque settings for precise screwdriving plus 1 setting for regular drilling and 1 for hammer drilling
- Variable speed ensures a gentle start and full control at all times
- Lithium-Ion technology: no memory effect, no self-discharge and always ready for use
- Ergonomic design and softgrip for optimal comfort and control
- Belt clip for easy carrying

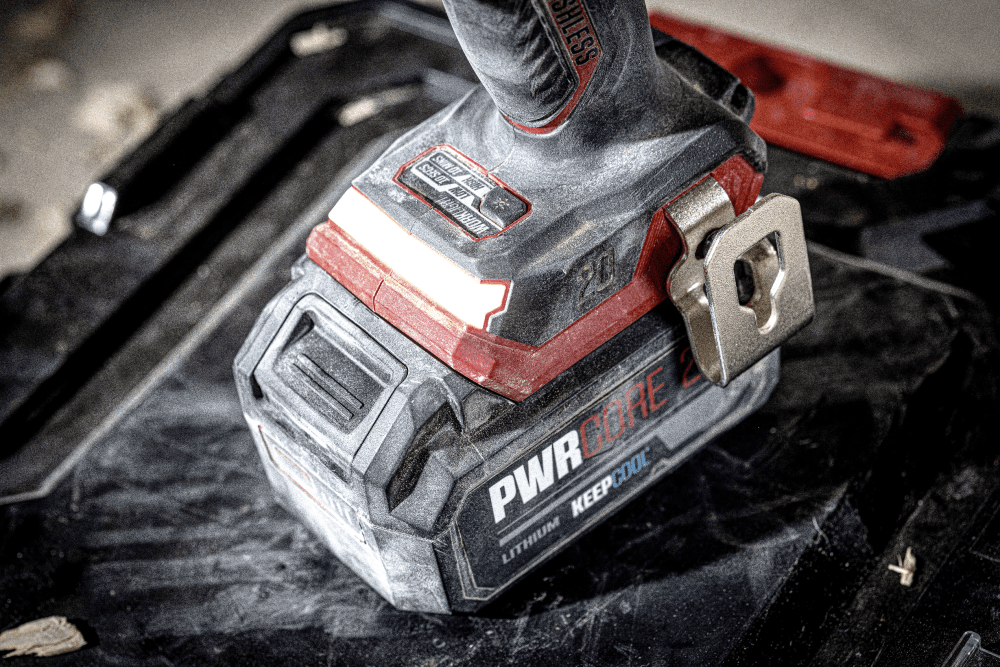

KEEPCOOL™
Our patented ‘KEEPCOOL™’ technology prevents batteries from overheating and improves battery performance.
Discover KEEPCOOL™ACTIVCELL™
Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.
Discover ACTIVCELL™

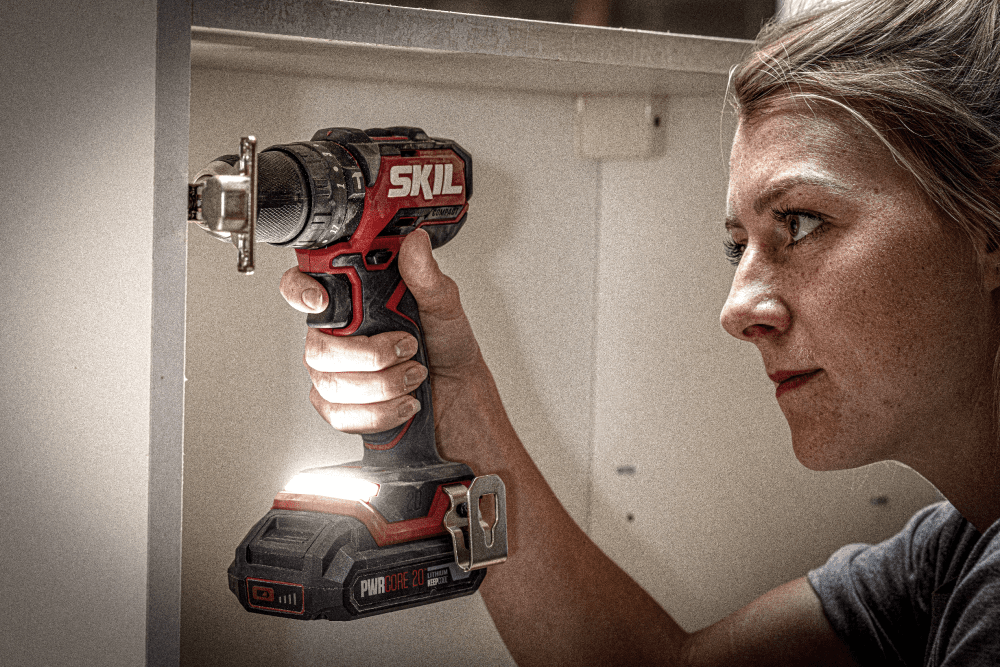

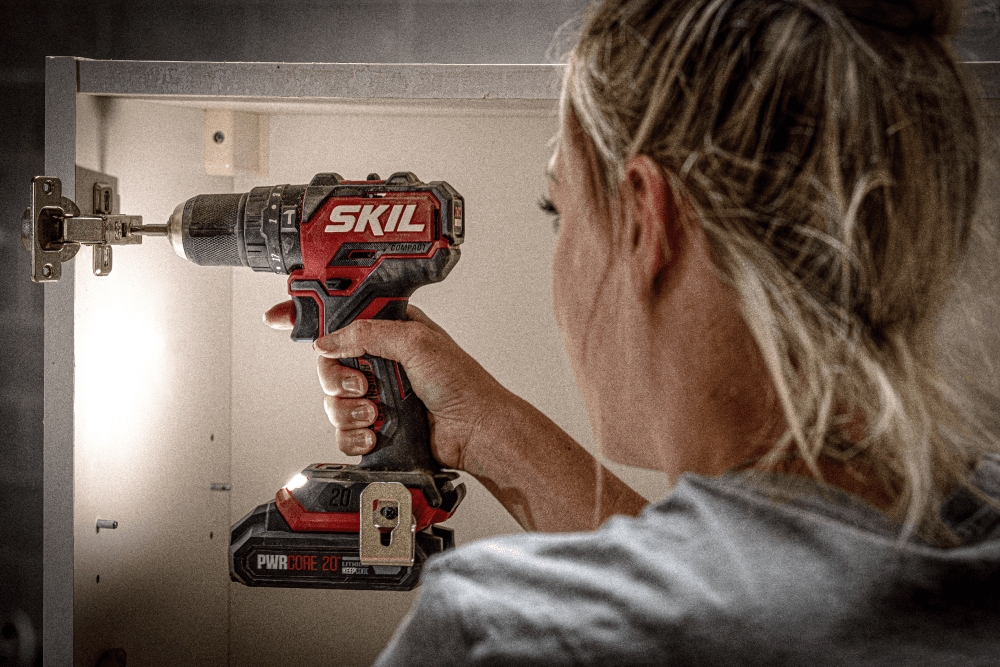

Advanced LED light

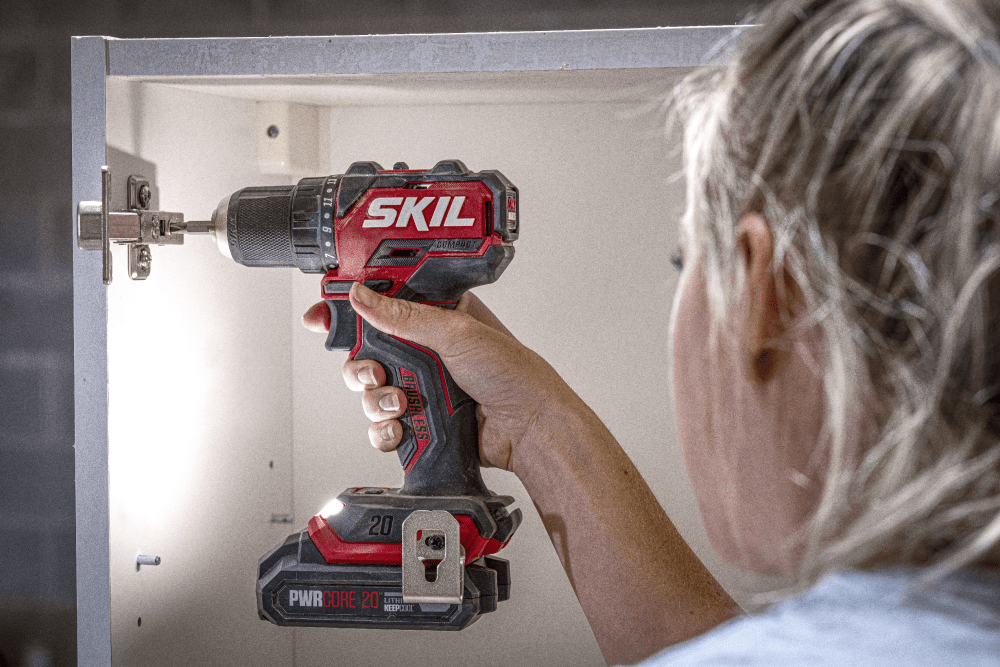

Great visibility of your workpiece is assured by our advanced LED light with 2 modes, including torch mode and automatic shut-off function.
Discover Advanced LED lightDigital Brushless Motors
The latest cutting-edge technology is embedded in the very DNA of each and every SKIL tool. Our compact, digital brushless motors deliver extra power, extra efficiency and a longer lifetime than comparable brushed motors.
Discover Digital Brushless Motors


PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.
PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.
Product Description

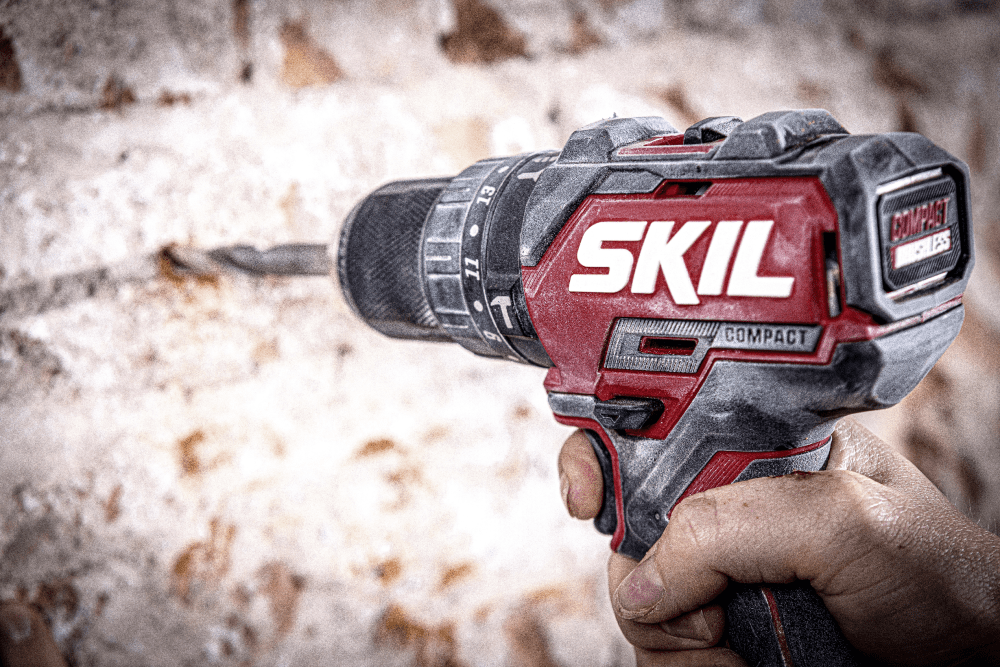

Compact brushless cordless hammer drill with two gears
The ‘20V Max’ 3075 cordless hammer drill is part of SKIL’s compact brushless range. These tools are extremely compact and offer a combination of high performance, durability and an unmatched level of convenience. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading, advanced ‘PWRCORE 20™’ battery and charger technology. Our SKIL 3075 is a brushless cordless hammer drill with impact function. This tool is ideal for drilling into wood, metal and even masonry and for the toughest screwdriving jobs. Thanks to the compact and lightweight design, working overhead or in hard-to-reach tight areas is a breeze. The digital brushless motor delivers more power, more efficiency and a 10x longer lifetime than a comparable brushed motor. The tool has two gears and 17+1+1 torque settings for regular and hammer drilling and precise screwdriving results. Thanks to the function selector you can easily switch between screwdriving, drilling and hammer drilling. This tool has a 13-mm keyless ratcheting chuck for optimal bit gripping strength. Great visibility of the workpiece is assured by the advanced LED light with 2 modes, including torch mode. The automatic spindle lock allows easy accessory changing. All in all, this versatile tool truly offers everything you need: reliable Lithium-Ion battery technology, variable speed for full control and softgrip that provides extra working comfort. The SKIL 3075 JA is supplied in a carrying case with a 6-piece screwdriving bit set, a double-ended screwdriver bit and a belt clip. The battery and charger aren't included.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
Specifications
Performance Level | ADVANCED PERFORMANCE |
---|---|
Drilling capacity in masonry | 13 mm |
Two mechanical speeds | Yes |

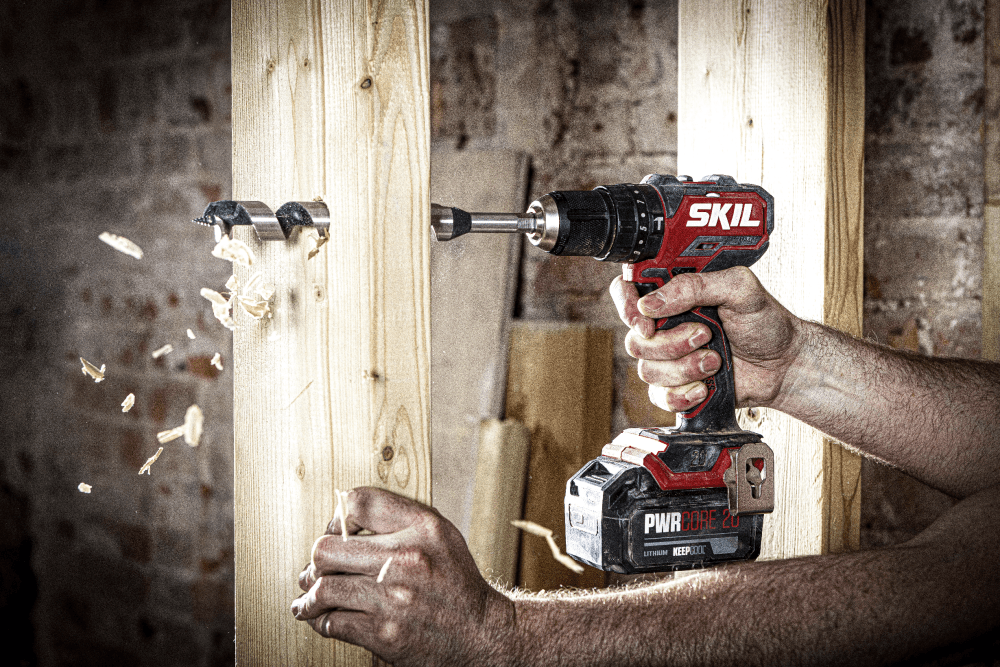

Drilling capacity in wood | 50 mm |
Drilling capacity in steel | 13 mm |
Chuck capacity (“) | 13 mm |
Capacity screws | 10 mm |
Clutch settings | 17+1+1 |
Chuck Type | Single-sleeve keyless w/ lock |
Net weight excl. battery | 0.9 kg |
Voltage Max | 20 V Max |
No-load speed | 0-500/0-1800 |
Max. torque hard joint | 60 N·m |
Battery type | Lithium-Ion |
Max. impact rate | 0-7500/0-27000 IPM |
LED Light | Yes |
LED Light | No |
Variable speed switch | No |
New | No |
Brushless | Yes |
Power Platform | PWRCORE20 |
Power source | Direct Current |
EAN | 4894863200129 |
Sound pressure | 88 dB |
Uncertainty noise power (K) | 5 dB |
Uncertainty Vibration (K) | 1.5 m/s² |
Sound power | 99 dB |
Vibration level (drilling in metal) | < 2.5 m/s² |
Vibration level (impact drilling in concrete) | 8 m/s² |

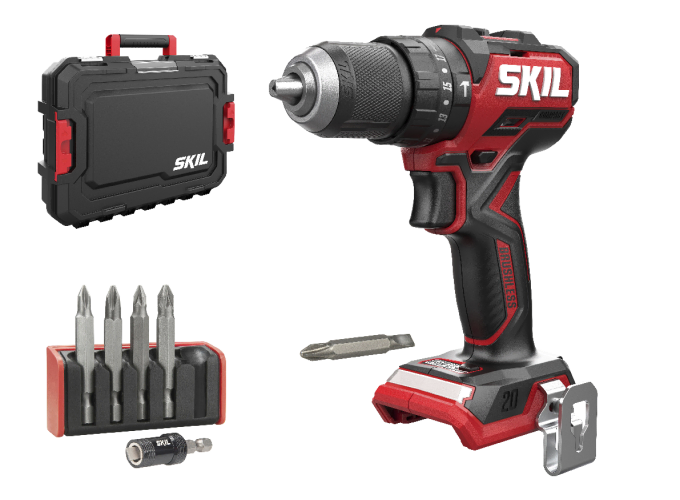

Packaging contains
- SKIL 3075 brushless cordless hammer drill
- Carrying case
- 6-pc screwdriving bit set (incl. 'BIT GRIP™')
- Double-ended screwdriver bit
- Belt clip
- Instruction manual
