Table saw


- 254mm table saw with powerful 2000W motor for fast and smooth cutting

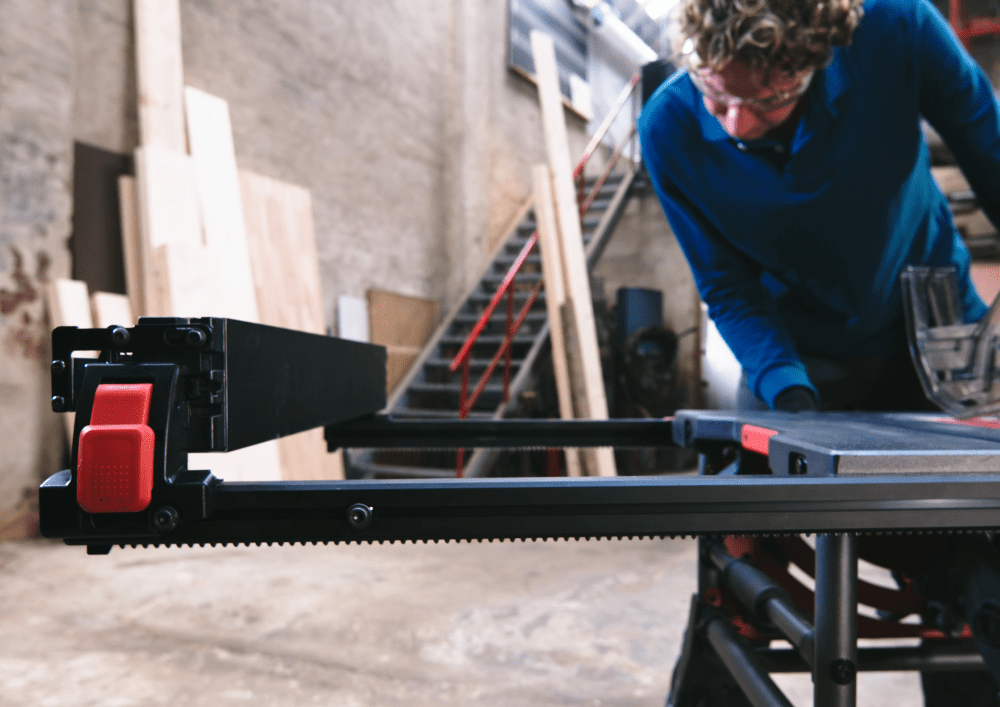

- Rack and pinion rail makes fence adjustment fast, smooth and accurate
- 2-in-1 rip fence can also be used as table extension

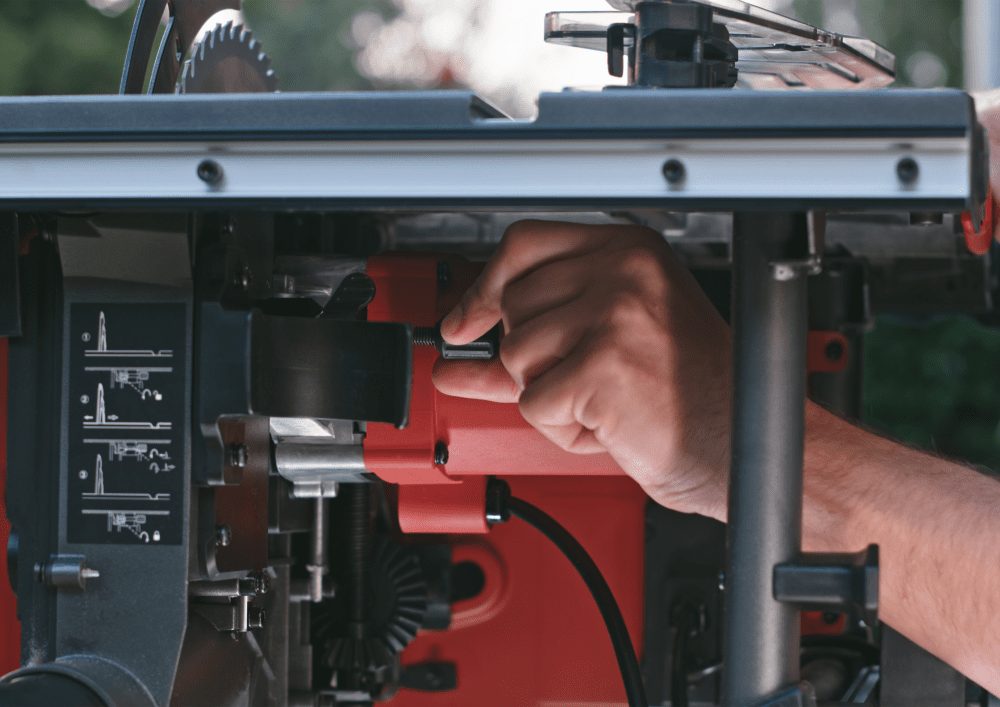

- Keyless fine adjustment of blade parallelism
- Fast blade height adjustment
- Easily foldable integrated stand with quick lock for convenient operation

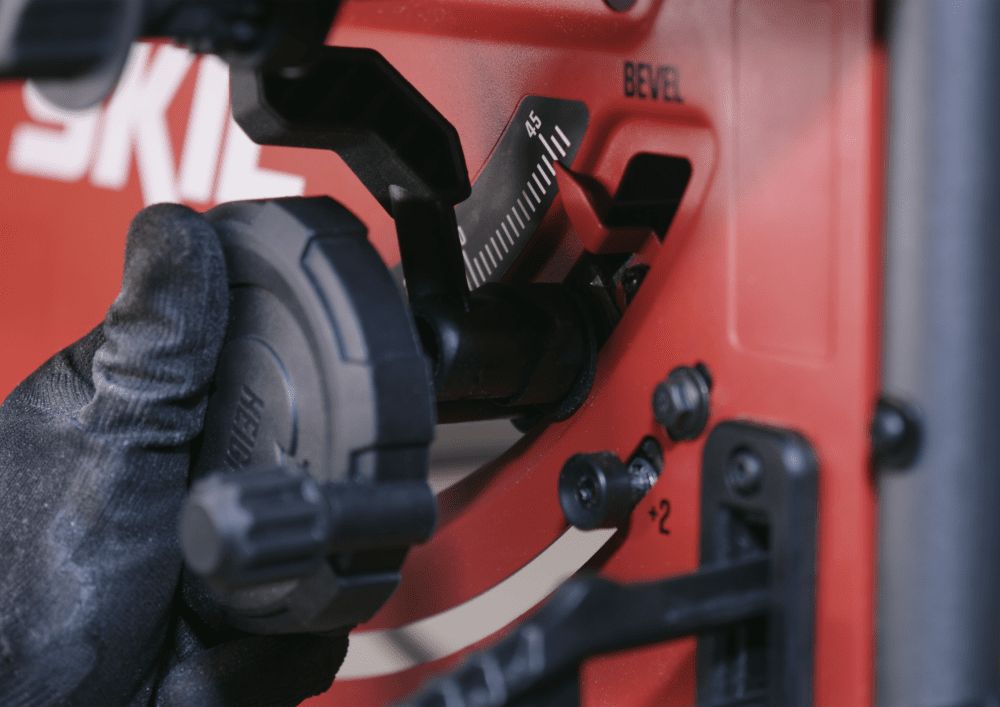

- Steplessly adjustable bevel cut angles (-2° - 47° max) and stops for easy 0° and 45° bevel cutting
- Aluminium tube frame offers greater stability and durability
- Easy transportation with carrying handle and very compact storage
- On tool accessory storage for fence, miter gauge, push stick, blade guard and wrenches
- Restart protection prevents accidental starting after a power shut off
- Clean working conditions: direct the output of your saw dust with the dust concentrator
- Vacuum cleaner adapter for minimized dust levels
Product Description

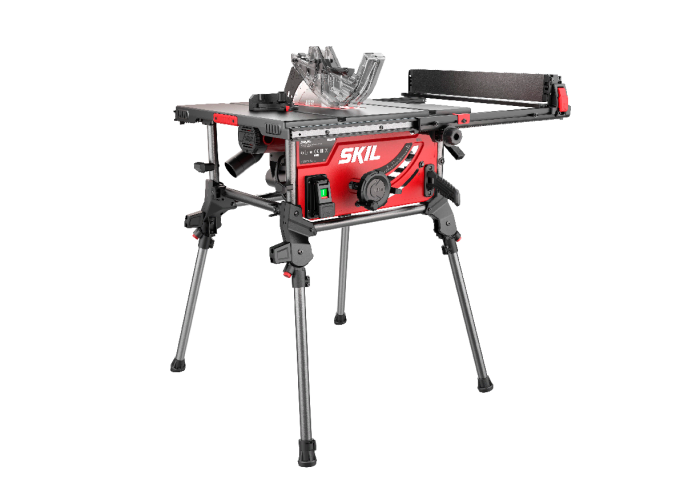

Accurate, powerful 254mm table saw
The SKIL 1340 table saw has an extremely powerful 2000W motor to handle even the toughest challenges with a maximum sawing depth of up to 90mm. A sturdy rack and pinion system ensures fast and highly accurate rip fence adjustment.
Fast, accurate fence and blade adjustment

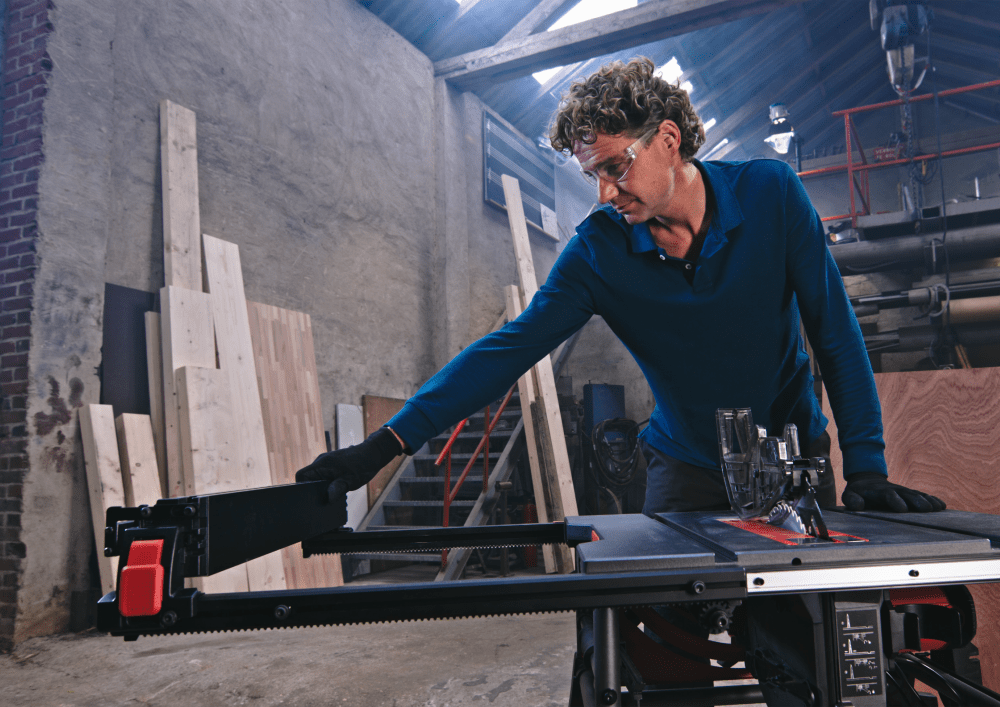

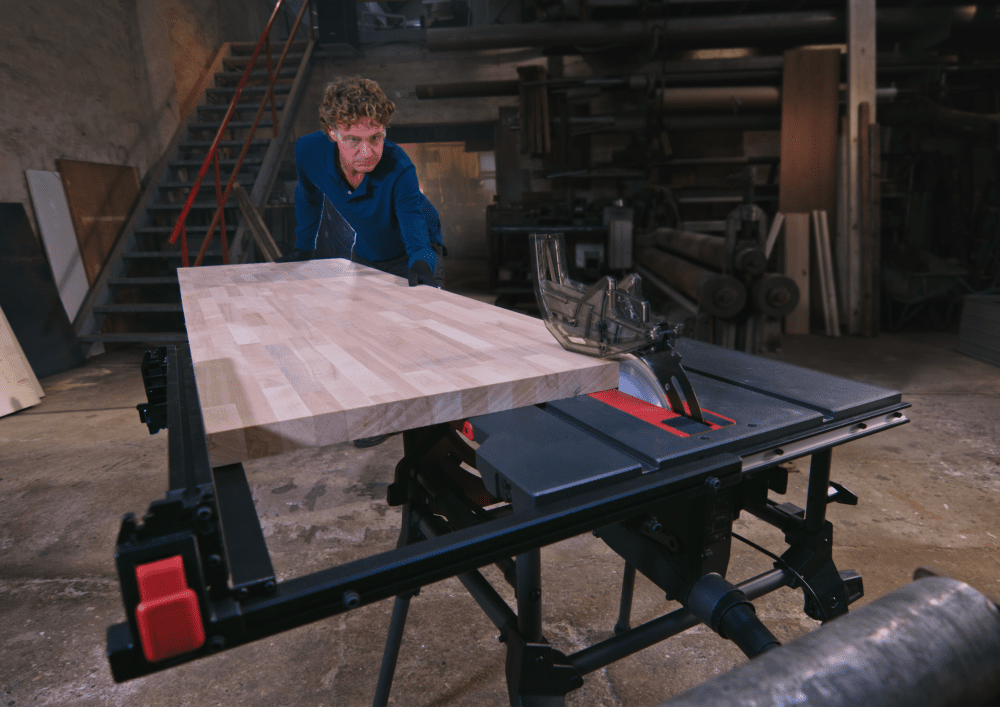

Model 1340 has a multifunctional keyless rip fence that can be transformed into a table extension to support and guide large workpieces up to 64cm on the right side of the blade. A sturdy rack and pinion system ensures fast and highly accurate rip fence adjustment. And adjusting the blade height can also be done very conveniently, by just turning a large knob. The extra keyless blade fine-adjustment option ensures blade and rip fence remain meticulously parallel at all times. The bevel cutting angles can be adjusted without a key from -2° to 47°, with pre-defined stops at 0° and 45°.
Easy set-up and transport

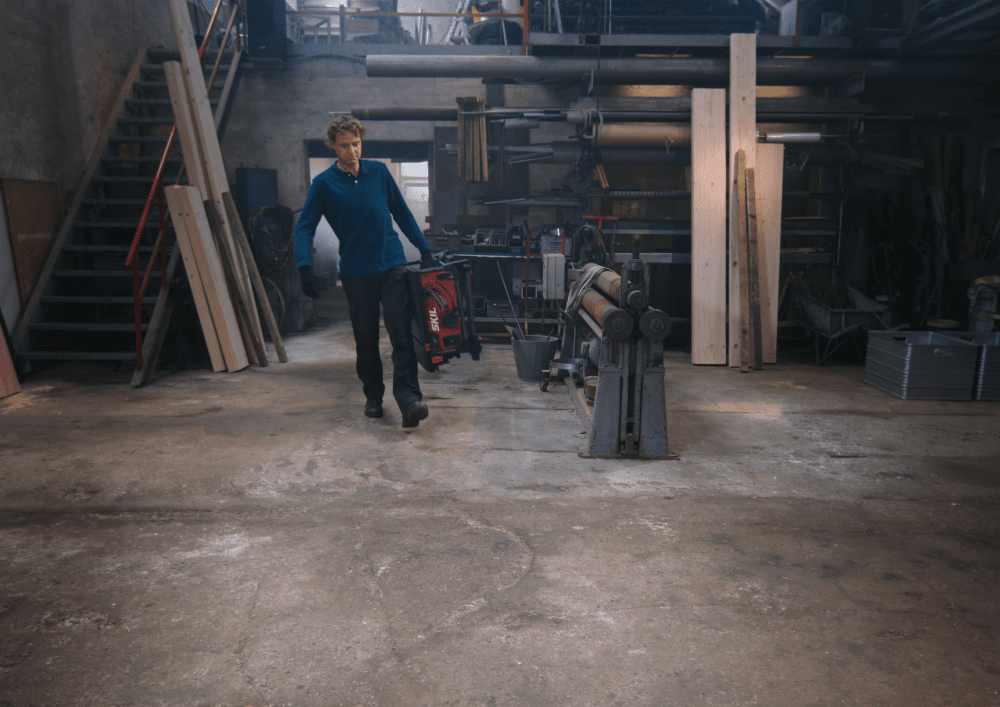

The SKIL 1340 table saw has a sturdy aluminium tube frame and integrated legs, which can be easily folded up by means of a keyless quick lock system. One of the legsis adjustable in height, guaranteering stability at all times. And the supplied accessories are stored on the product for added convenience. The table can be folded very compactly for storage and transport. There's even an extra handle for easy carrying.
Minimizing dust with vacuum cleaner adapter and exhaust pipe
The 1340 table saw comes with a vacuum cleaner adapter and an elbow shaped dust exhaust pipe. If there’s no vacuum cleaner at hand, this will direct most of the dust straight into a dustbin or bucket. Plus model 1340 AA comes with a mitre gauge, push stick, two wrenches and a 48-tooth carbide-tipped 254mm sawblade, extra fine for excellent results.
Specifications
Performance Level | ADVANCED PERFORMANCE |
---|---|
Blade Arbor Hole Diameter | 30 mm |
Blade Diameter | 254 mm |
Max. Cutting Depth - 0° Bevel | 90 mm |
Max. Cutting Depth - 45° Bevel | 63 mm |
Max. RIP of Left of Blade | 340 mm |
Max. RIP of Right of Blade | 640 mm |
EAN | 8719643004543 |
Power source | Alternating Current |
Video Url | https://youtu.be/uqZxShPumr0?rel=0 |
New | No |
Voltage (V) | 220-240 V |
Max. bevel angle | -2 / 47 ° |
Frequency | 50-60 hz |
Power | 2000 W |
No Load Speed | 4500 |
Packaging contains
- SKIL 1340 table saw
- 2-in-1 rip fence

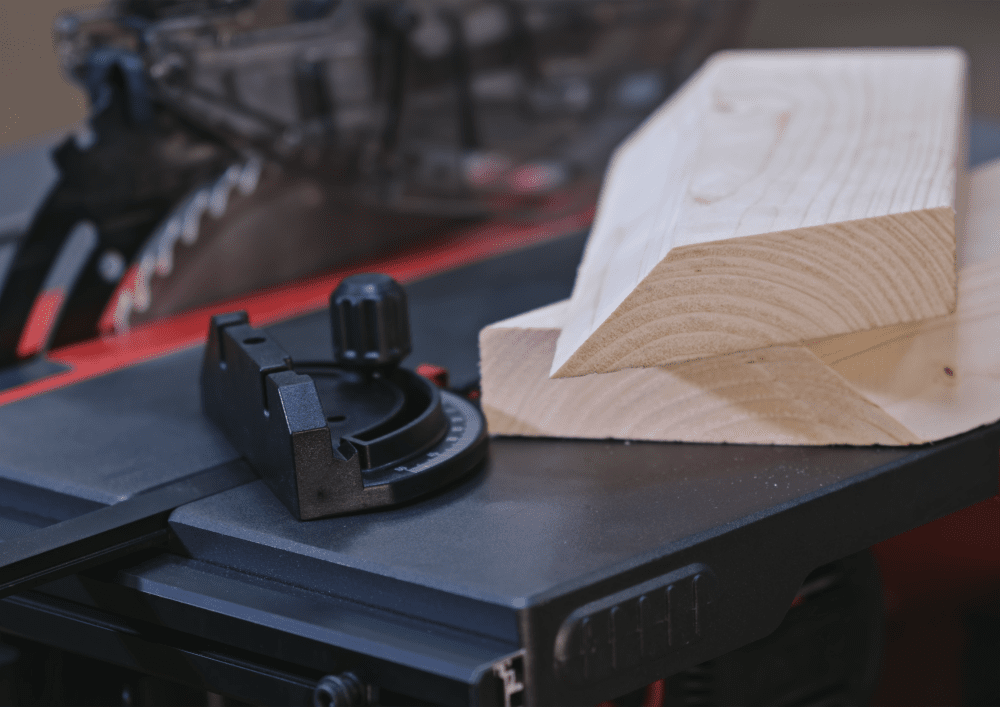

- Mitre gauge
- 254 mm 48T carbide tipped blade
- Riving knife with blade guard
- Riving knife without blade guard
- Push stick
- Dust exhaust pipe
- Vacuum cleaner adapter
- 2 wrenches
- Hex key
- Instruction manual
