3520 AA

Cordless circular saw

Powerful '20V Max' (18V) cordless circular saw with a cutting depth up to 54 mm

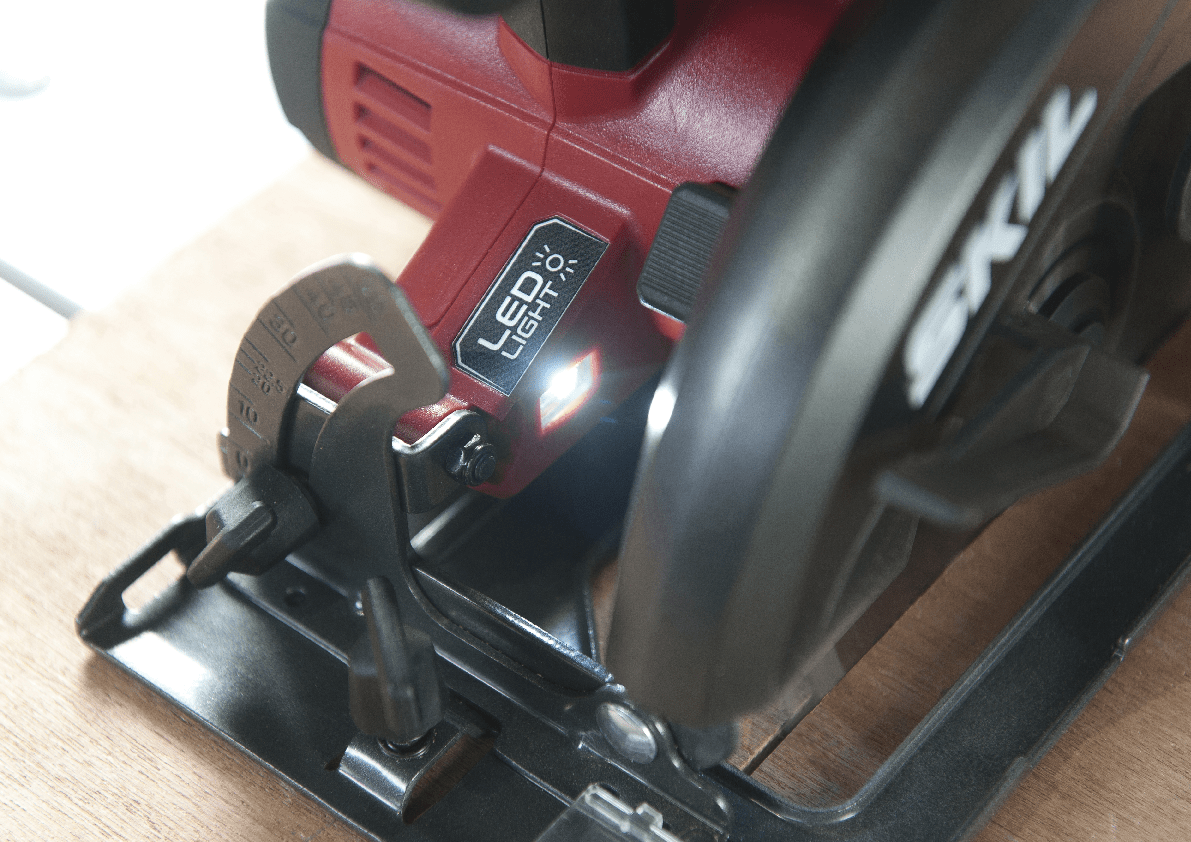

LED light illuminates the line of cut for better sight of the workpiece
Maximum cutting depth of 54 mm at 90° and 44 mm at 45°

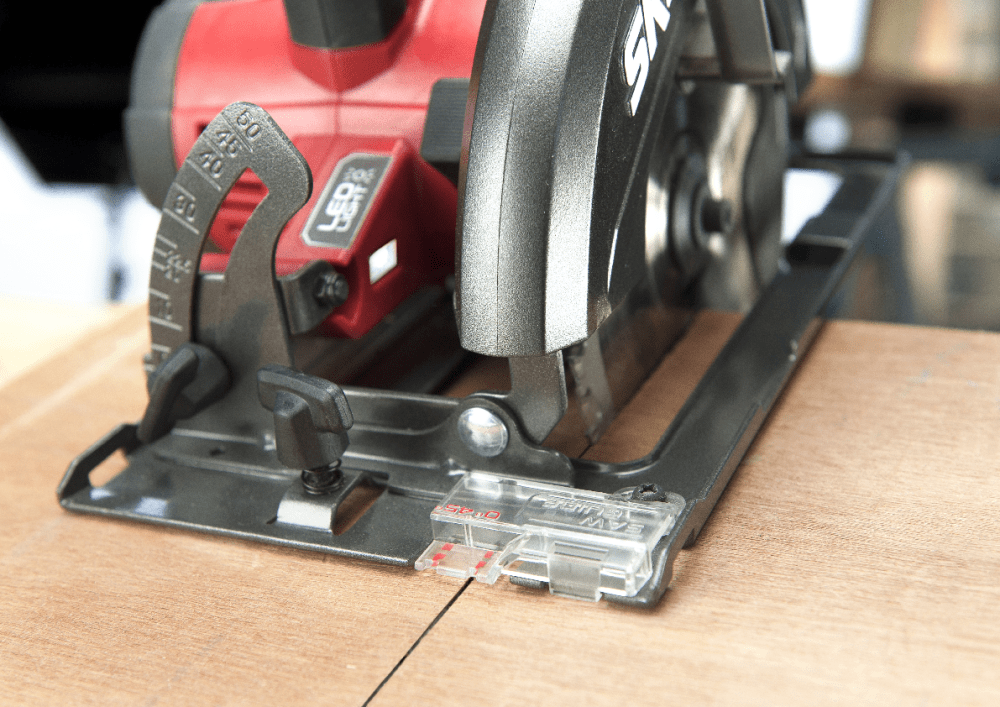

Saw line visor for easy and accurate tracing of marked line
Electric brake assures greater comfort and allows quicker work
Spindle lock for easy blade changing

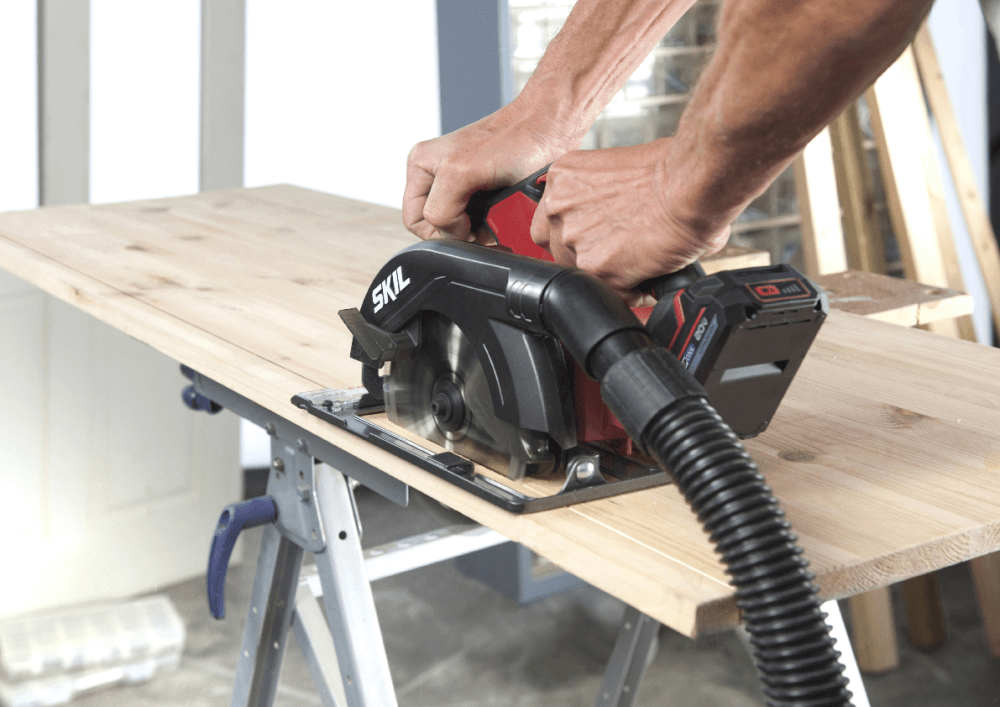

Dust port for attaching a vacuum cleaner or dustbag if needed
Ergonomically superior design ensures optimal control and guidance
Blade on left side for maximum visibility of the cutting line
Lithium-Ion technology: no memory effect, no self-discharge and always ready for use
Patented battery-level indicator conveniently displays the charge level of the battery
Integrated key storage
Dust-protected bearings ensure extra durability

Unavailable in this country

ACTIVCELL™

Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.

Discover ACTIVCELL™

PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.

PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.

DISCOVER PWRCORE20™

Product Description

Precise cordless circular saw with saw line visor

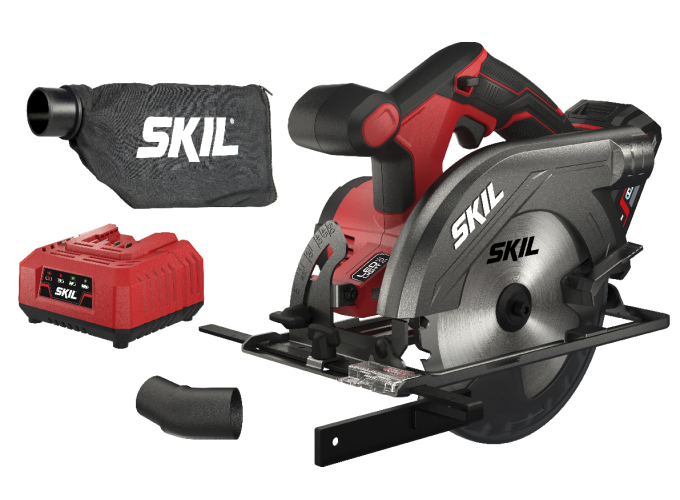

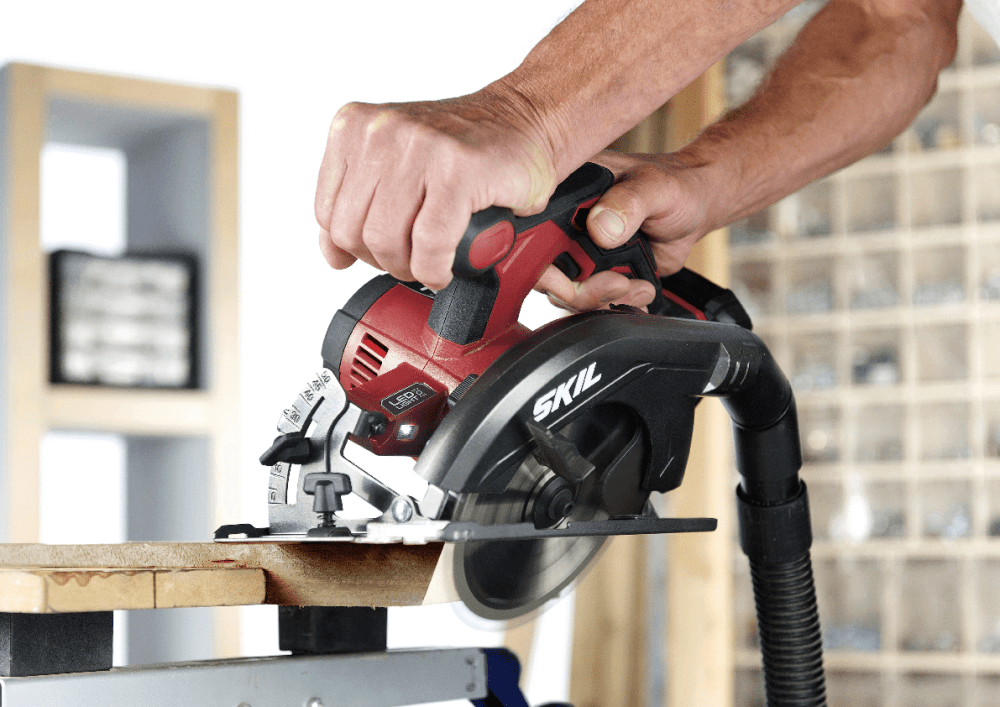

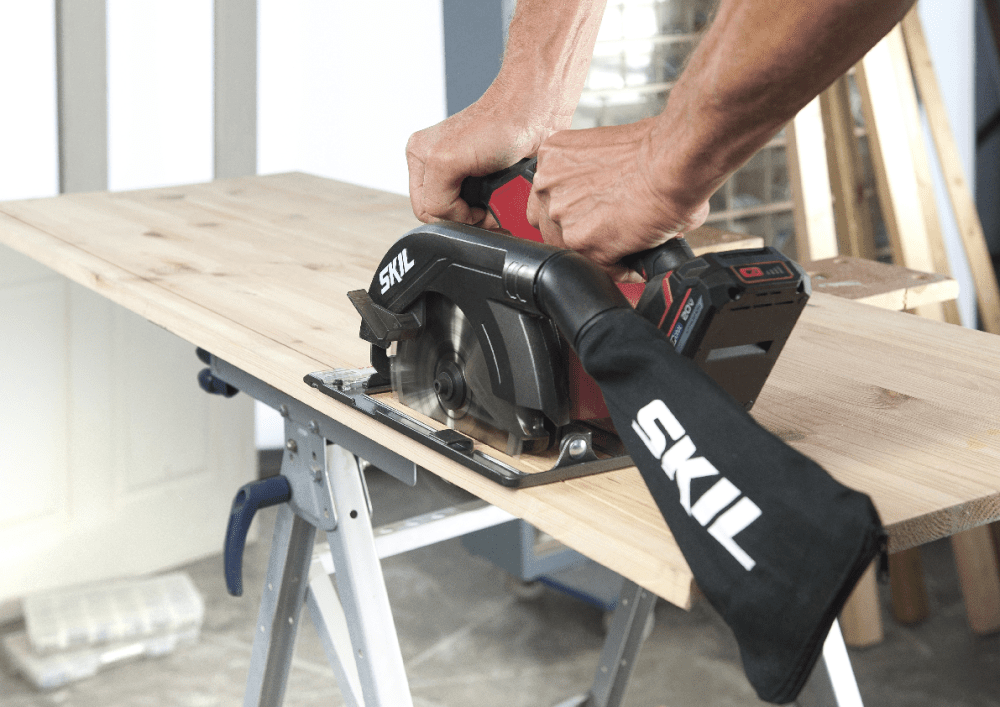

The ’20V Max’ (18V) SKIL 3520 cordless circular saw is ideal for precise sawing up to 54 mm deep. To give you an idea, most commonly used depths (of planks, beams, etc.) can be easily handled with this capacity. Good visibility of your work is assured thanks to the LED light. The adjustable footplate allows bevel cuts up to 50°. A saw line visor is attached for easy, accurate tracking of the marked line. For a cleaner working environment, the vacuum cleaner adapter fits most standard-size vacuum cleaners. Other handy features include the electric brake for extra working comfort and the spindle lock for easy blade changing. To provide durability this circular saw is equipped with sealed ball bearings. Sealed ball bearings protect the saw from dust to extend the saw’s lifetime. What’s more, this circular saw has ergonomic softgrip handles that ensure optimum control and working comfort. The SKIL 3520 AA is supplied with a ‘20V Max’ (18V) 2,5Ah ‘Keep Cool’ battery, a fast charger, a 24-tooth carbide-tipped saw blade, parallel guide, vacuum cleaner adapter and dust bag.

‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools

The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.

Specifications

Performance Level	HIGH PERFORMANCE
Net weight excl. battery	2.5 kg
Saw blade Ø	165 mm
Sawing capacity at 90°	54 mm
Sawing capacity at 45°	44 mm
Arbor Ø	16 mm
Net weight incl. battery	2.9 kg
Battery capacity	2.5 A·h
Number of batteries	1
Charge current	2.4 A
Voltage Max	20 V Max
No-load speed	4500
Battery type	Lithium-Ion
Voltage/frequency (charger)	220-240V/50-60Hz
Charging time	1.25 h
Power Platform	PWRCORE20
Brushless	No
Video Url	https://www.youtube.com/embed/YEGgFtyzVos?rel=0
Power Source	DC
LED Light	No
LED Light	Yes
EAN	8719643001207
Sound pressure	91 dB
Uncertainty Vibration (K)	1.5 m/s²
Sound power	102 dB
Uncertainty noise pressure (K)	3 dB
Vibration level (cutting wood)	< 2.5 m/s²
