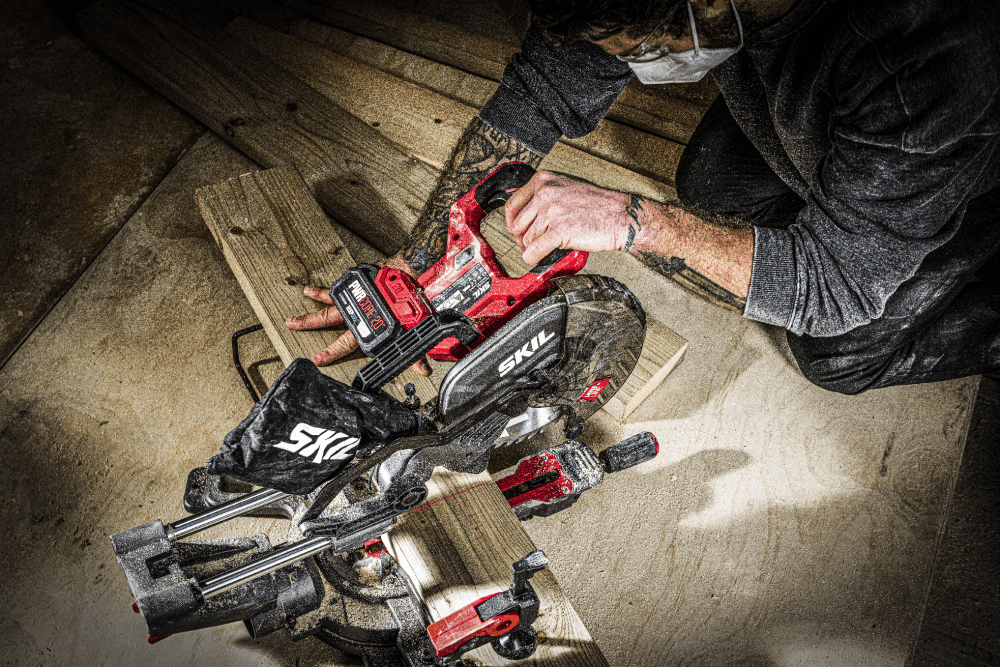

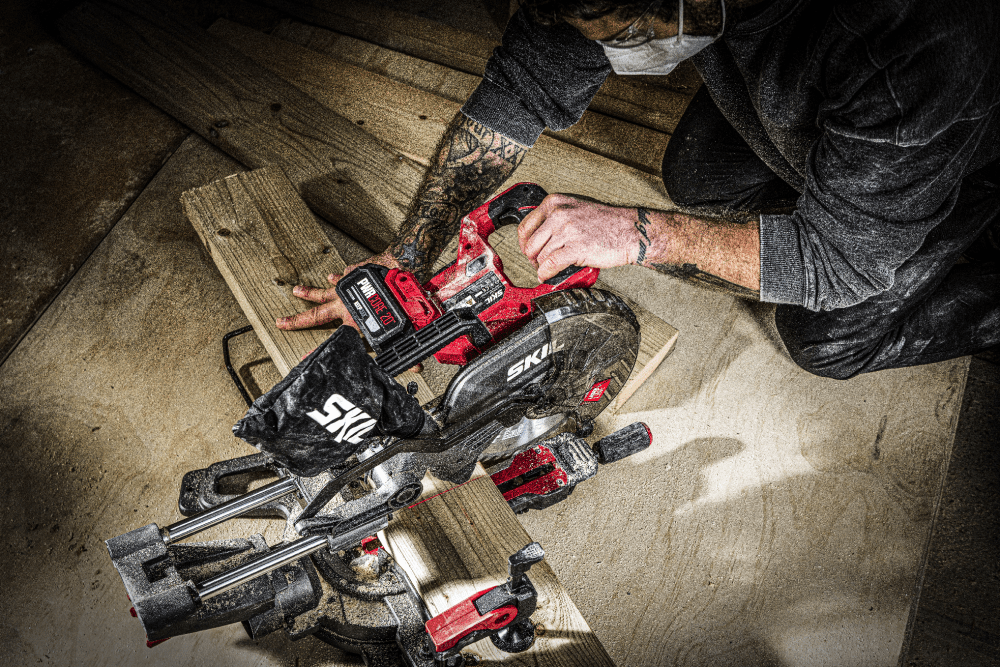

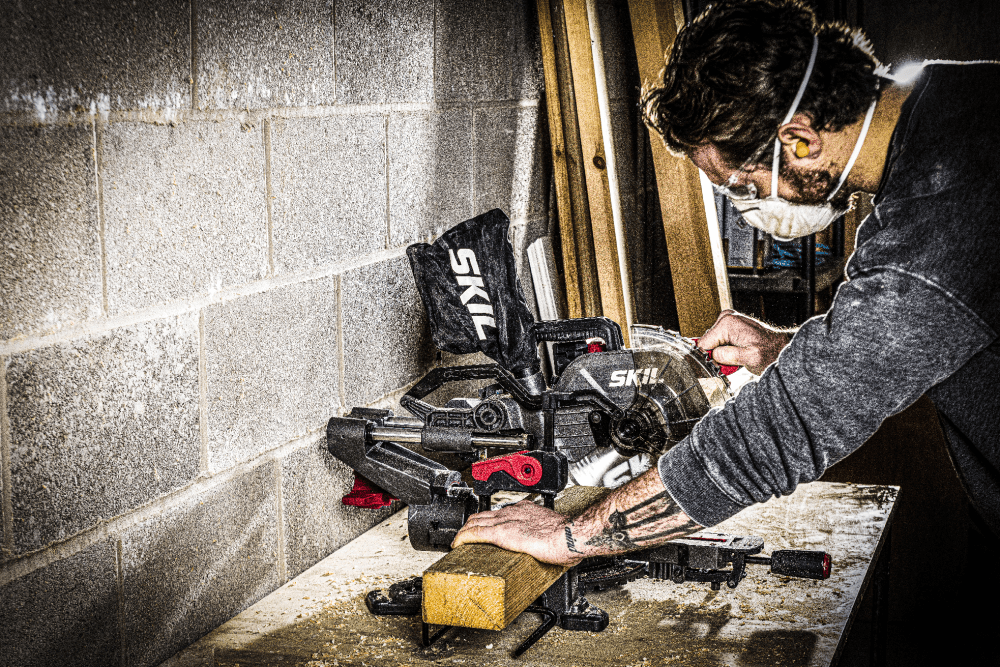

Cordless sliding mitre saw
- Overslide system prevents that the bars extend to the rear when cutting, allowing the saw to be placed close to the wall
- Quick-clamp system, for convenient and fast workpiece fixation
- Easy transportation thanks to its carrying handle, compactness and light weight

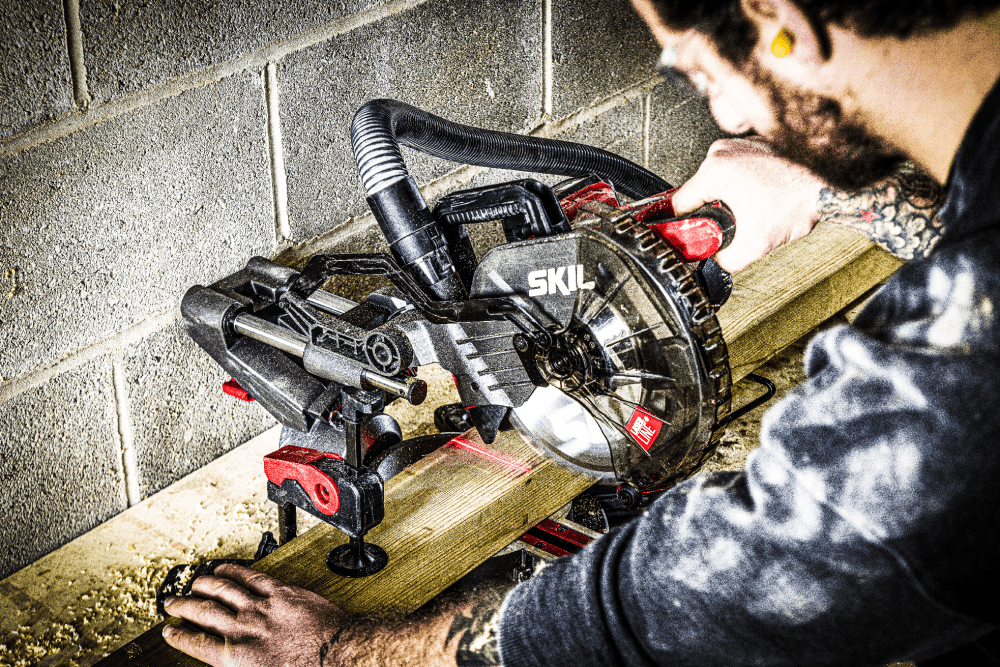

- Accurate laser cutting-line indicator, with easy fine adjustment
- Sliding system enables a large cutting capacity
- Steplessly adjustable mitre cut angles and positive stops left + right (0°, 15°, 22,5°, 31,6°, 45°)
- Adjustable table extensions for long workpieces
- Groove cutting function
- Durable construction with ball-bearings, helical gears and aluminium saw table
- Integrated vacuum cleaner connection
- Comfortable handle and front controls
- Spindle lock enables easy blade changing
KEEPCOOL™
Our patented ‘KEEPCOOL™’ technology prevents batteries from overheating and improves battery performance.
Discover KEEPCOOL™ACTIVCELL™
Our intelligent ACTIVCELL™ technology continuously monitors the voltage, temperature and current of the battery. Transmitting this information to the tool in real-time, it helps extract the right amount of energy from the battery for the job.
Discover ACTIVCELL™

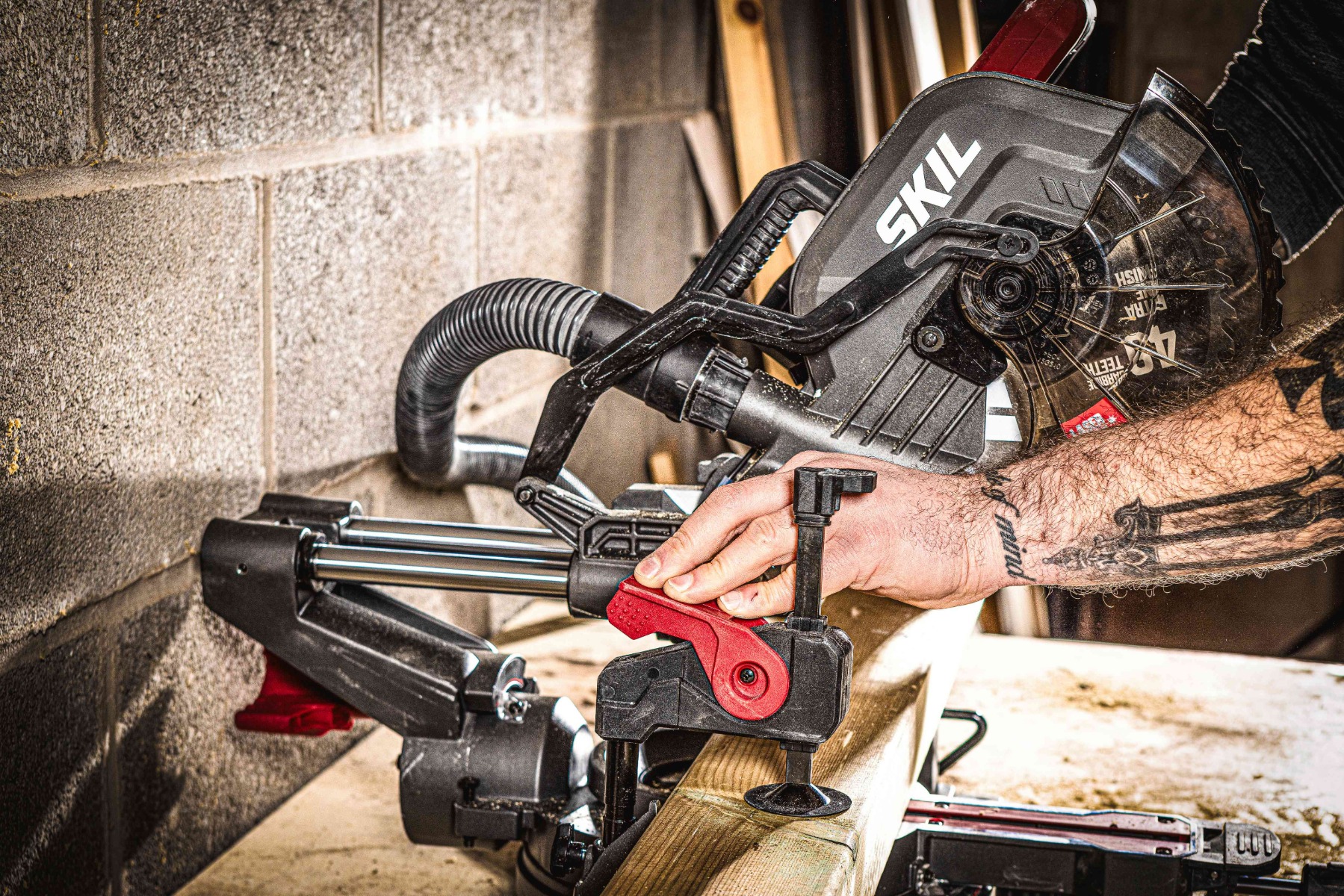

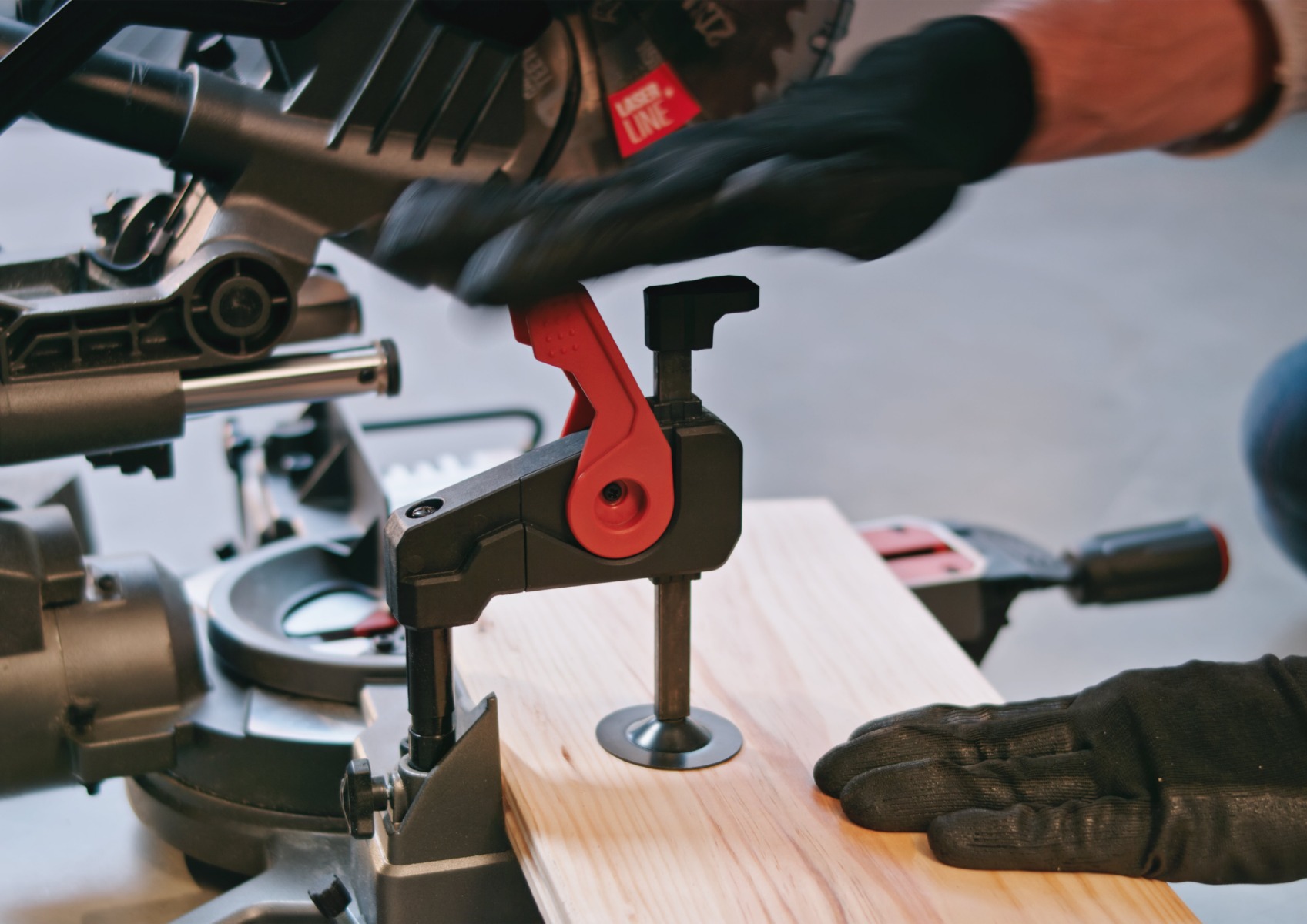

QUICK CLAMP
The time-consuming task of securing a workpiece becomes a matter of seconds, thanks to the SKIL quick clamp. The clamp maintains control while you operate the saw.

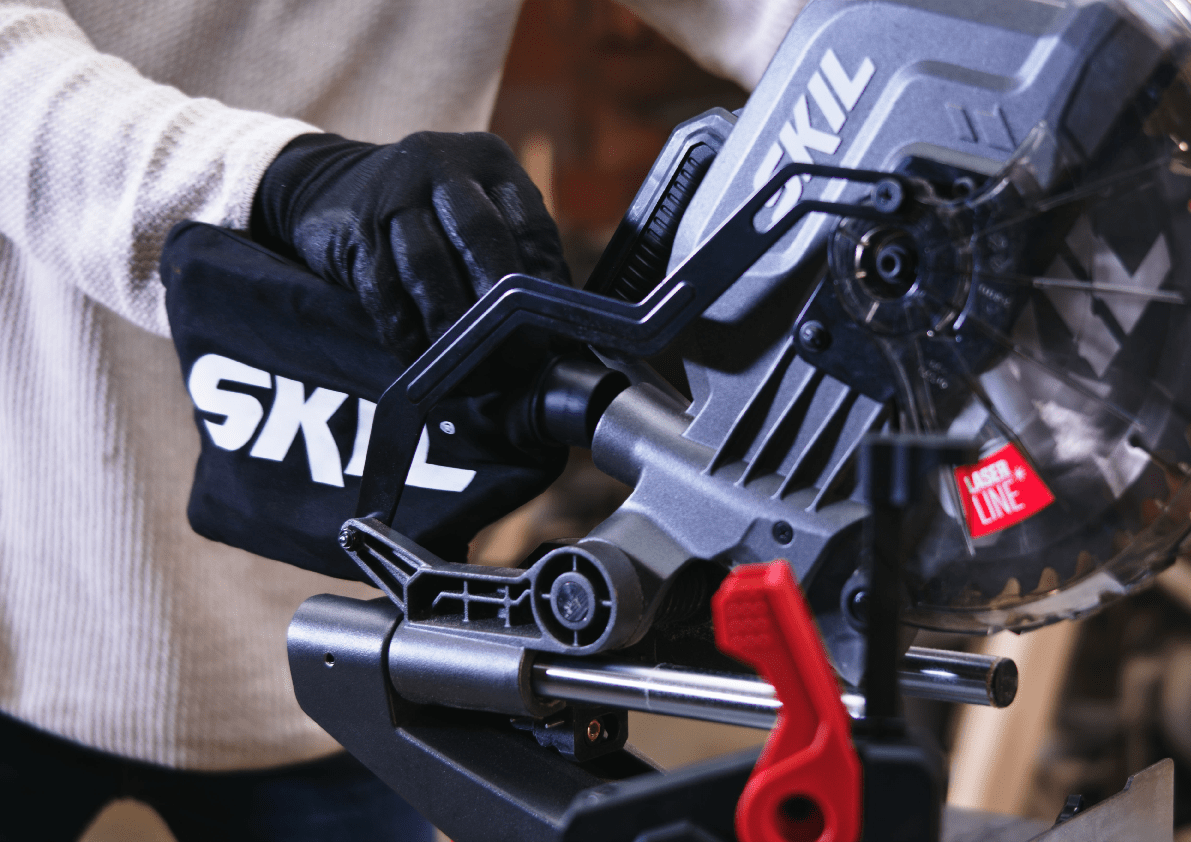

Discover QUICK CLAMPAdjustable laser

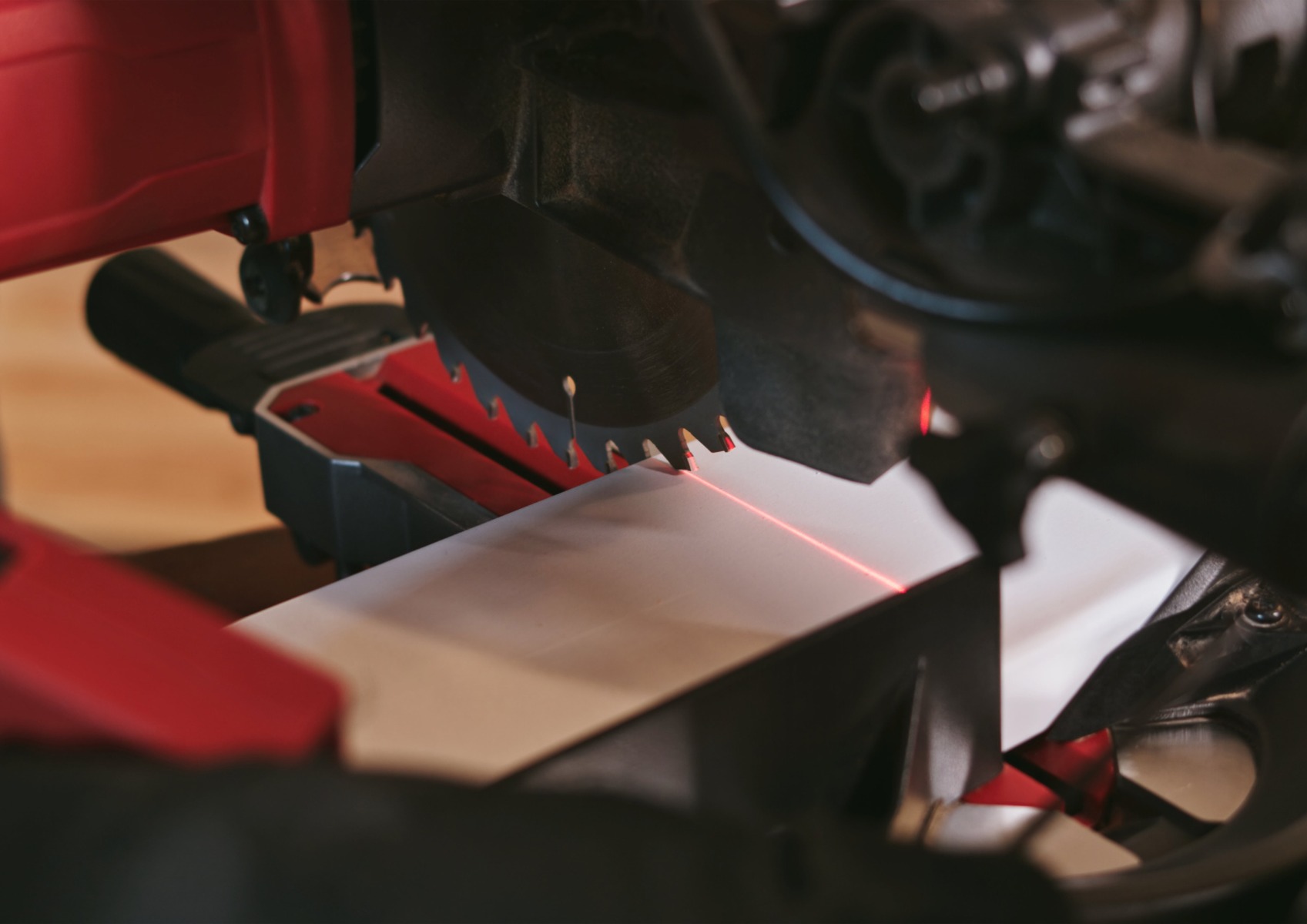

Compensating for the thickness of the saw blade, the SKIL adjustable laser provides precise alignment options, improving the quality of your projects.
Discover Adjustable laser

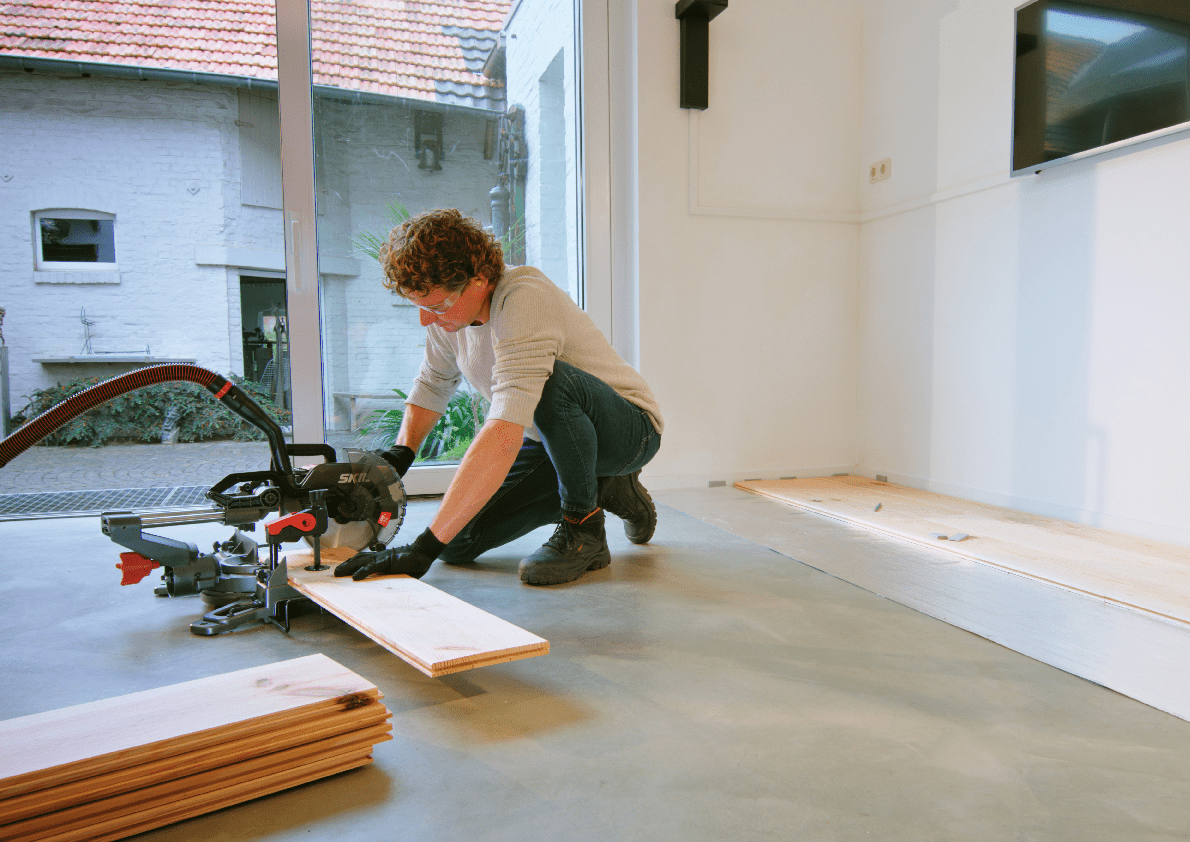

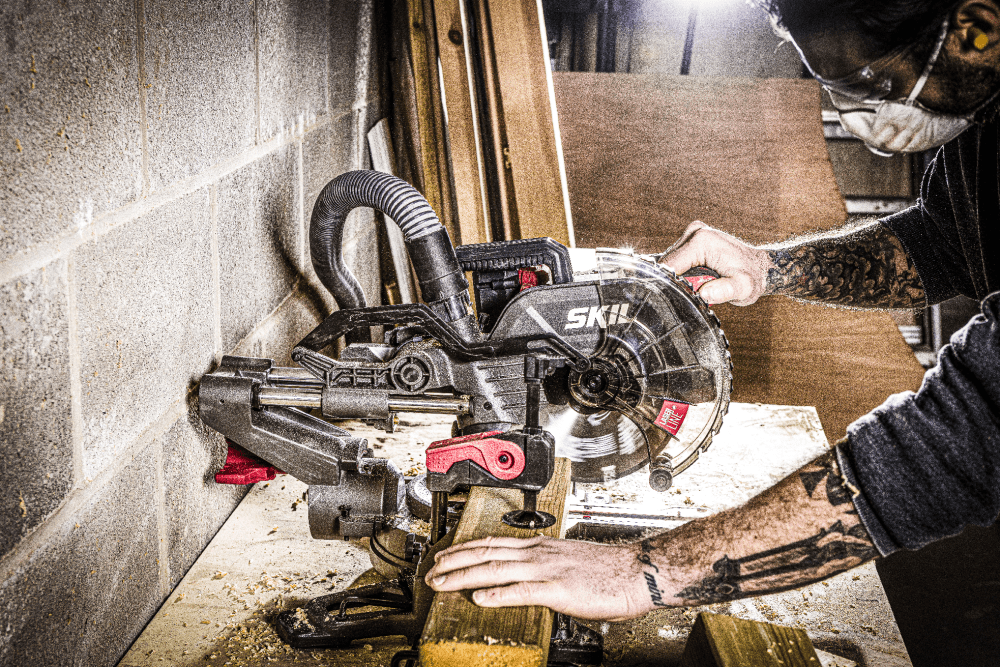

Overslide system

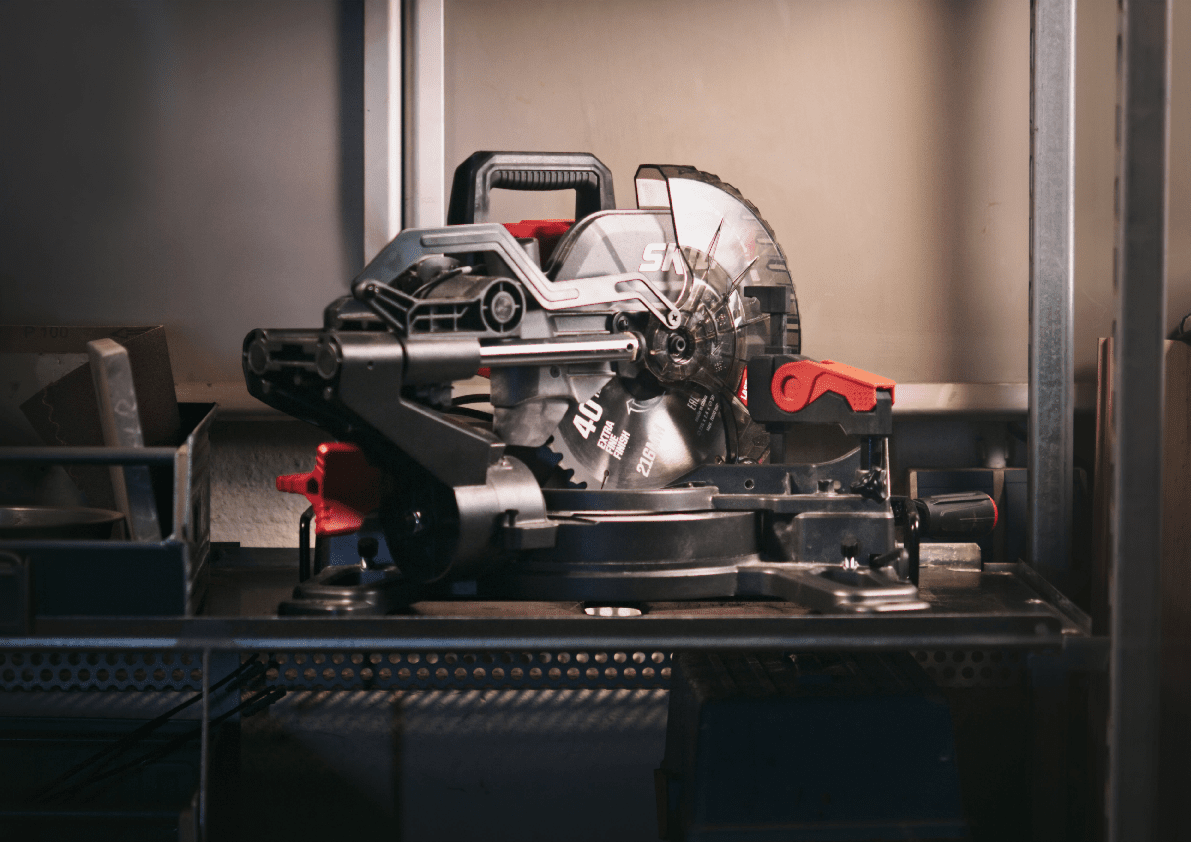

The saw heads of the most compact SKIL sliding mitre saw models slide over the bars, allowing you to work close to walls without the bars extending to the rear.
Discover Overslide system
PWRCORE 20™ SERIOUS POWER AND PERFORMANCE.
PWRCORE 20™ is the perfect choice for bigger projects. The serious power and performance allow you to complete every task at hand with ease.
Product Description

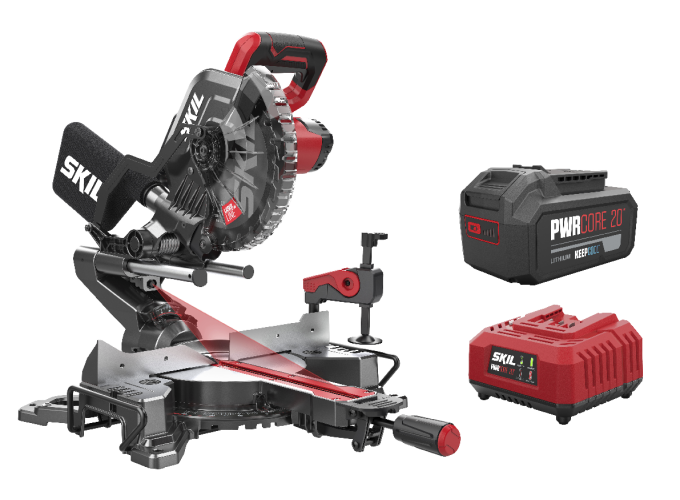

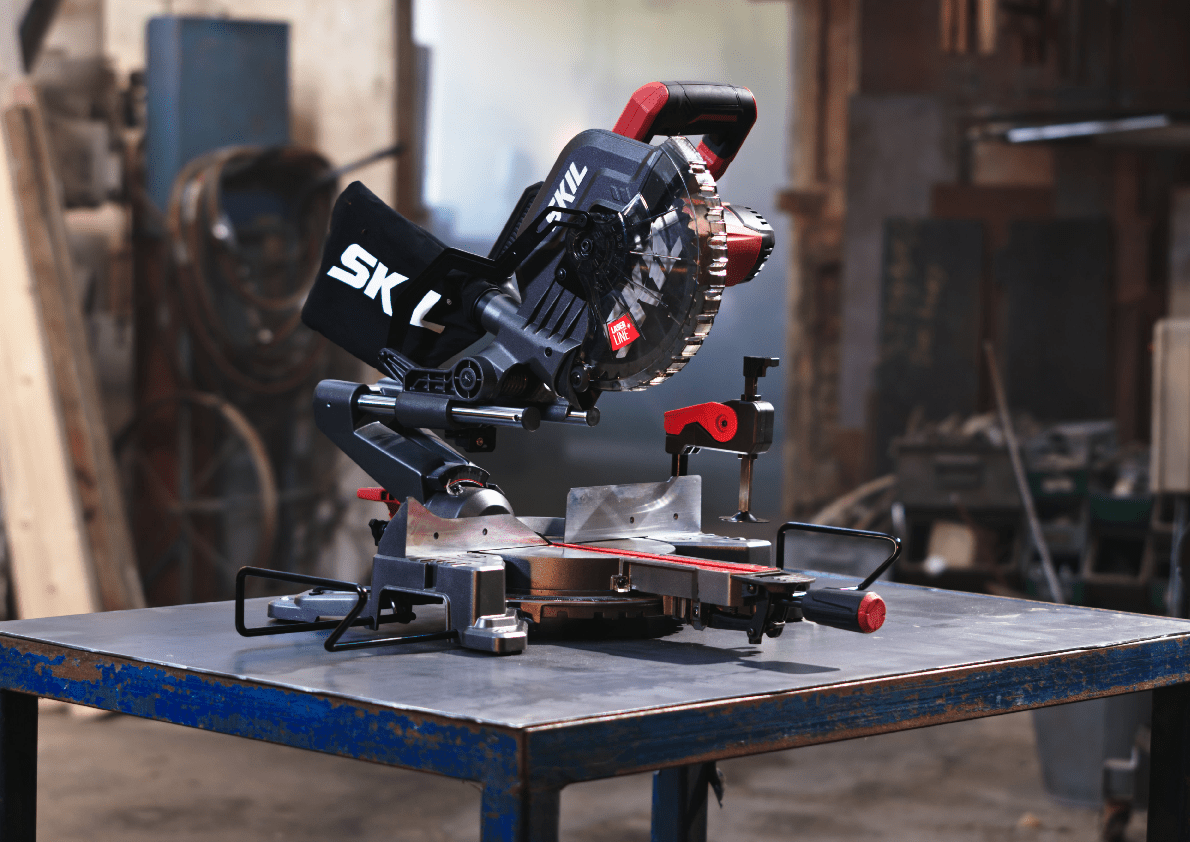

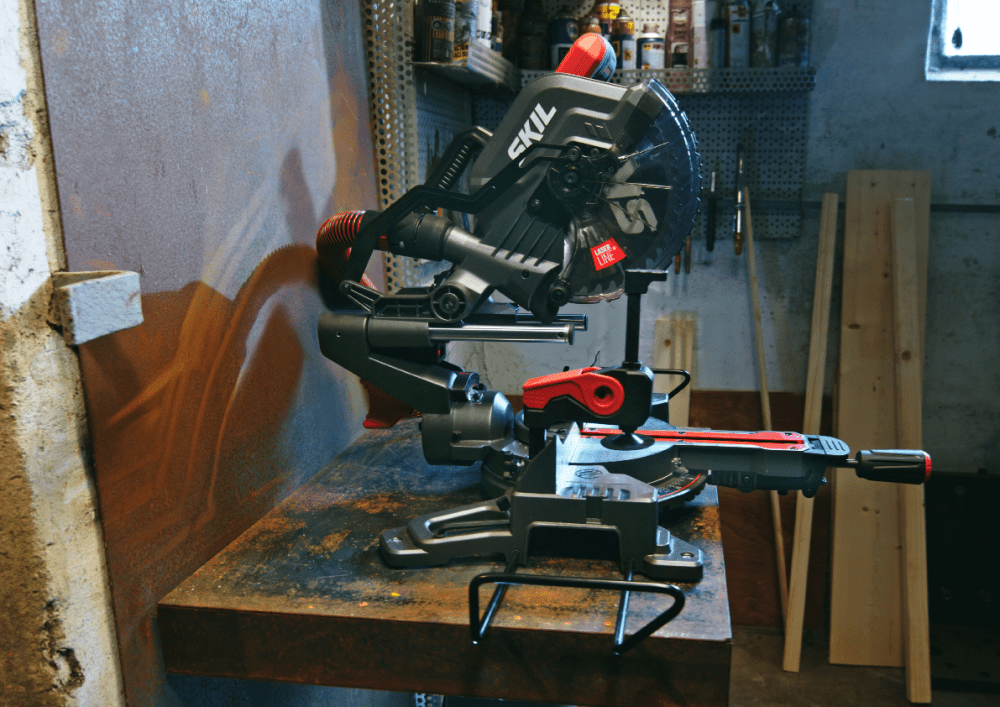

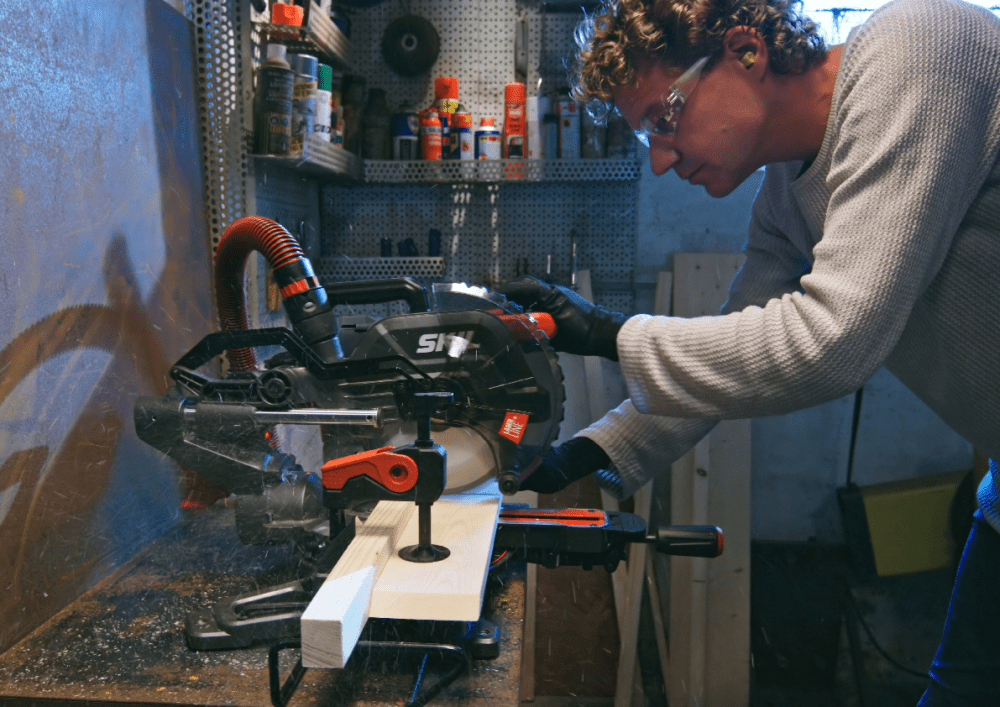

Space-saving and innovative 216 mm cordless sliding mitre saw
The ‘20V Max’ SKIL 3590 cordless sliding mitre saw is extremely compact and lightweight. But don’t be deceived by its size. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading, advanced ‘PWRCORE 20™’ battery and charger technology. This powerful battery system, combined with a smart overslide function, means this tool can easily handle demanding sawing tasks. In most mitre saws, the saw head is attached to the bars, which extend to the backend of the product when sawing. The SKIL 3590, on the other hand, has fixed bars and a sliding saw head, which means the saw can be placed close to a wall. Attaching a workpiece is a cinch with the unique quick clamp system, which is much faster than conventional clamping systems. And its accurate laser clearly indicates the line of cut. It’s easy to adjust, a huge plus that ensures optimal accuracy and flexibility to set the laser line to the left or to the right side of the blade. Saw angles are steplessly adjustable for precise bevel and mitre cuts and pre-defined stops ensure effortless adjustment to the most used angles. The table extensions for longer workpieces are fully inclinable and there’s even an extra handle for easy carrying. The SKIL 3590 also comes with a large capacity dust bag and integrated vacuum cleaner connection in the aluminium guard. The SKIL 3590 AA is supplied with one 4.0Ah ‘KEEPCOOL™’ battery, a fast charger, a 40-tooth carbide-tipped 216 mm saw blade, table extensions, a workpiece quick clamp and a dust bag.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL '20V Max' tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
Specifications
| Performance Level | HIGH PERFORMANCE |
|---|---|
| Battery capacity | 4.0 A·h |
| Charging time | 2 h |
| Voltage/frequency (charger) | 220-240V/50-60Hz |
| Battery type | Lithium-Ion |
| Voltage Max | 20 V Max |
| Charge current | 2.4 A |
| Number of batteries | 1 |
| Net weight excl. battery | 11.4 kg |
| Net weight incl. battery | 11.7 kg |
| Max. bevel angle | 45(L) ° |
| Max. Miter Angle | 47(R), 47(L) ° |
| Cutting Capacity at 0° Miter / 0° Bevel | 220 x 70 mm |
| Blade Arbor Hole Diameter | 30 mm |
| Blade Diameter | 216 mm |
| Cutting Capacity at 45° right & left Miter /0° Bevel | 155 x 70 mm |
| Cutting Capacity at 0° Miter / 45° Right Bevel | 220 x 40 mm |
| EAN | 4894863200365 |
| Power Platform | PWRCORE20 |
| Power Source | DC |
| No Load Speed | 3200 |
| Sound pressure | 90 dB |
| Uncertainty noise power (K) | 3 dB |
| Sound power | 100 dB |
Packaging contains
- SKIL 3590 cordless sliding mitre saw
- 'PWRCORE 20™' 4.0Ah Li-ion battery (3104)
- Charger 2.4A (3122)
- Table extensions
- Workpiece clamp
- 216 mm 40T carbide tipped blade
- Dust bag
- Hex key
- Instruction manual
